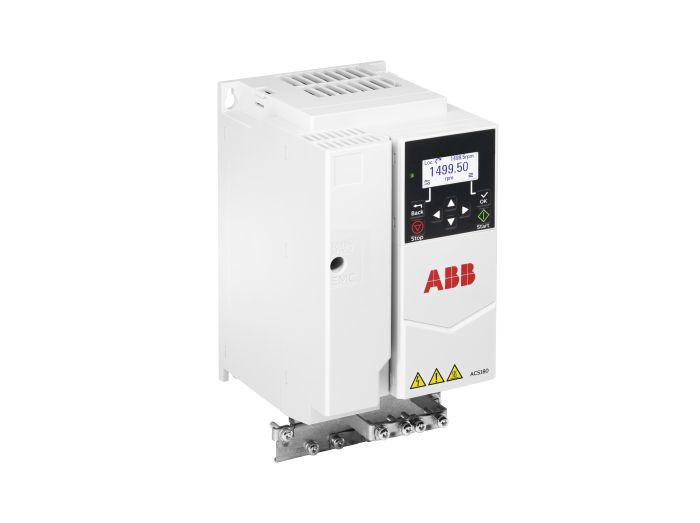

ABB ACH180-04S-17A0-4 AC Drive

Product Description

The ABB ACH180-04S-17A0-4 is an AC drive that works with 3-phase systems. It requires an input voltage between three hundred eighty and four hundred eighty volts AC. The drive supports both variable and constant torque applications. It has a variable torque rating of ten horsepower and fourteen amps, and a constant torque rating of seven and a half horsepower and eleven amps. This module is open-type and includes integrated operator controls. It is suitable for DIN rail mounting and is ideal for precise motor control in industrial settings.

• Designed for 3-phase, 380-480V AC input.
• Supports variable (10HP, 14A) and constant (7.5HP, 11A) torque applications.
• Features integrated operator controls and DIN rail mounting.

Product Highlights

This product is suitable for controlling motors in various industrial applications and can handle different torque requirements effectively.

Product Information

Standard Information

• Manufacturer: ABB
• Product Series: ACH180

Technical Specifications

• MPN: ACH180-04S-17A0-4
• Nominal Input Voltage: 380 VAC, 415 VAC, 480 VAC
• Phase: 3
• Variable Torque Rating: 10 hp
• Amps (Variable Torque Rating): 14 A
• Amps (Constant Torque Rating): 11 A
• Constant Torque Rating: 7.5 hp
• IP Rating: IP20
• Mounting: DIN Rail
• Height: 7.95 inches
• Width: 4.72 inches
• Depth: 5.63 inches
• Frequency: 63 Hz
• Net Weight: 5.675 lbs
