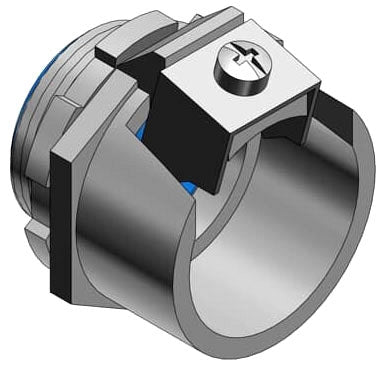

ABB 3121 T&B Tite-Bite Cable Connector 2-1/2 in Knockout 3121

Product Description

The ABB 3121 is a T&B Tite-Bite Cable Connector designed for armored cable and flexible metal conduit applications. This insulated connector features a two and one-half inch knockout. It's suitable for cable openings between two point eight one two inches and three point zero six two inches. The unit is made from malleable iron and coated with electro-zinc plating for corrosion resistance.

• Unique saddle design secures cable firmly.
• Suitable for AC and FMC cable types.
• Holds power exceeding agency requirements.

Product Highlights

This connector ensures high quality bonding under vibration or strain conditions.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• UPC: 78621003121

Technical Specifications

• Application: For armored cable and flexible metal conduit
• Cable Openings: 2.812 to 3.062 inches
• Cable Type: AC/FMC
• Connection Type: Straight
• Knockout Size: 2-1/2 inches
• Material: Malleable Iron
• Finish: Electro-Zinc Plated
• Standards/Approvals: CSA 2884|UL File No. E23018
