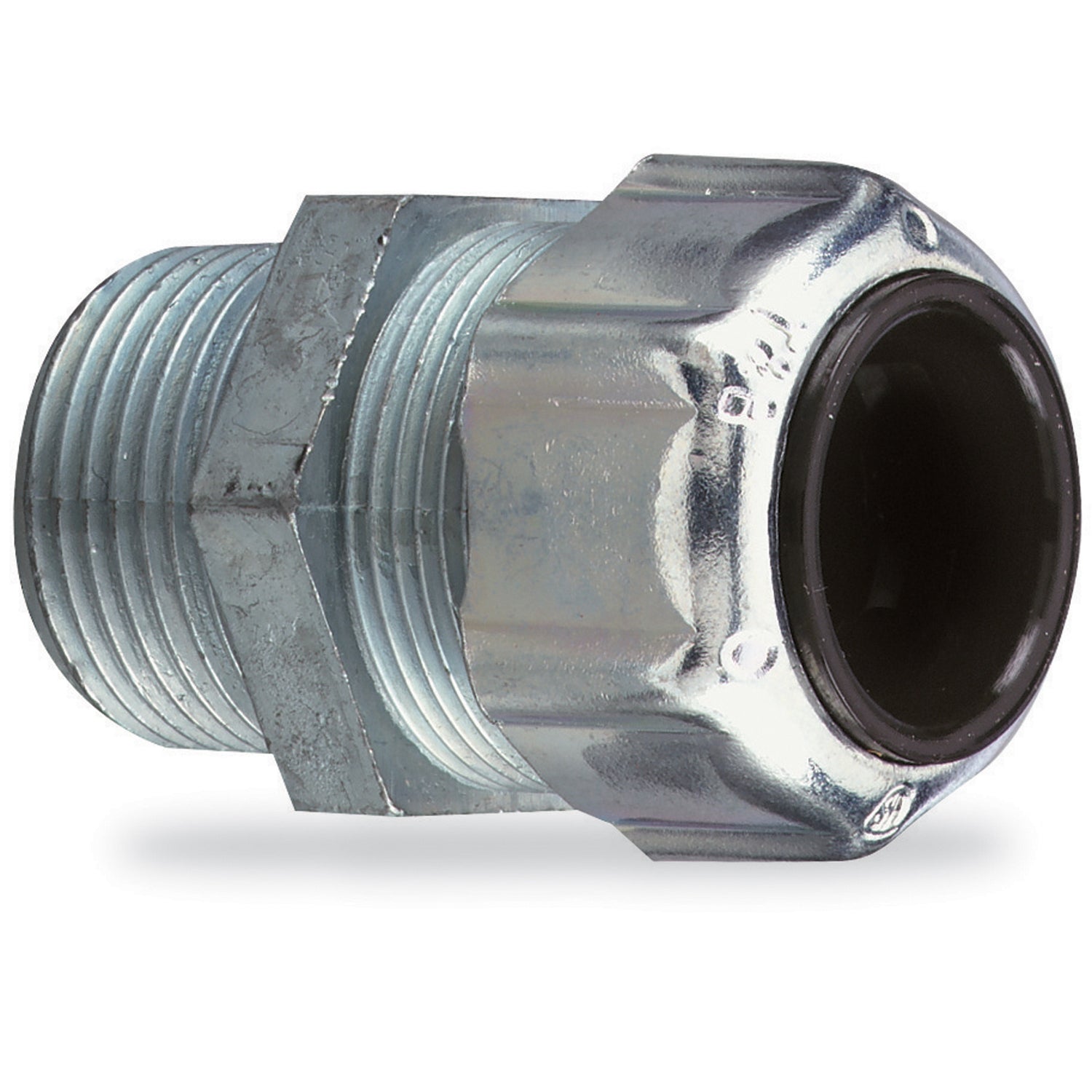

ABB 2574 T&B 2IN WT CORD CONNECTOR Liquidtight

Product Description

The ABB 2574 T&B Cord Connector is a liquidtight strain relief connector designed for secure cable management. This fitting accommodates cables with openings from one and three-eighths to one and five-eighths inches. Made from die-cast zinc, it is zinc plated for added durability and corrosion resistance.

• Compatible with S/SO cable types
• Temperature rated for up to one hundred five degrees Celsius
• Thread connection type for secure fastening

Product Highlights

This product is ideal for use in hazardous locations as defined under NEC 501-4(B). It ensures robust performance in demanding environments while maintaining compliance with industry standards.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• Trade Size: 2 inches

Technical Specifications

• Application: For hazardous locations
• Cable Openings: 1-3/8 to 1-5/8 inches
• Cable Type: S/SO
• Color: Metallic
• Connection Type: Thread
• Dimensions: 2-13/16 inches diameter x 2-5/8 inches length
• Finish: Zinc Plated
• Material: Die Cast Zinc
• Series: Ranger®
• Standards/Approvals: ANSI NFPA 70-2008, Coast Guard CG293, CSA C22.2, UL 514B
• Temperature Rating: 105 degrees Celsius
