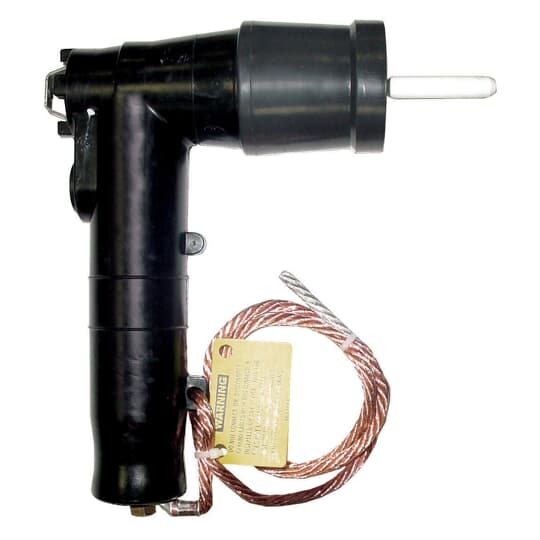

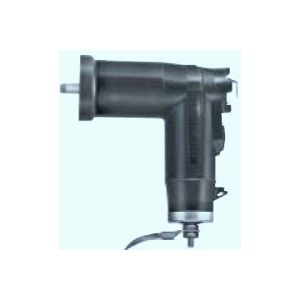

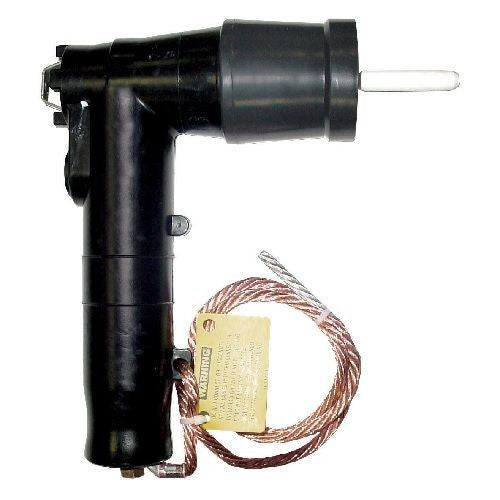

ABB 167ESA-10 Elastimold Elbow Surge Arrester

Product Description

The ABB 167ESA-10 Elastimold elbow surge arrester is a reliable surge protection device designed for underground power distribution systems. This device utilizes a metal oxide varistor (MOV) to effectively protect transformers, cables, and other electrical components from voltage spikes.

• Compact design allows for easy installation in existing cabinetry.
• Fully shielded and submersible for protection in various environments.
• Equipped with IEEE 386 interfaces for connection to 200 A loadbreak components.

Product Highlights

This arrester provides essential high voltage lightning and switching surge protection, ensuring the safety and integrity of your electrical systems.

Product Information

Standard Information

• Brand Name: ELASTIMOLD
• Category: Surge arrester

Technical Specifications

• MPN: 167ESA-10
• Voltage Rating: 15 kV
• Amperage Rating: 200 A
• Material: EPDM Molded Rubber
• Maximum Discharge Voltage: 43.5
• Operating Voltage: 15
• Standard & Approvals: ARRA, Buy American Act and RoHS Compliant
• Surge Protection Voltage: 8.4 kV RMS MCOV
• Duty Cycle Voltage: 10
• Application: High voltage lightning and switching surge protection for underground systems
• Arrester Type: Dead Front Elbow
• MCOV kV rms: 8.4
• Ground: 4-str Cu, 36 in. Lead
