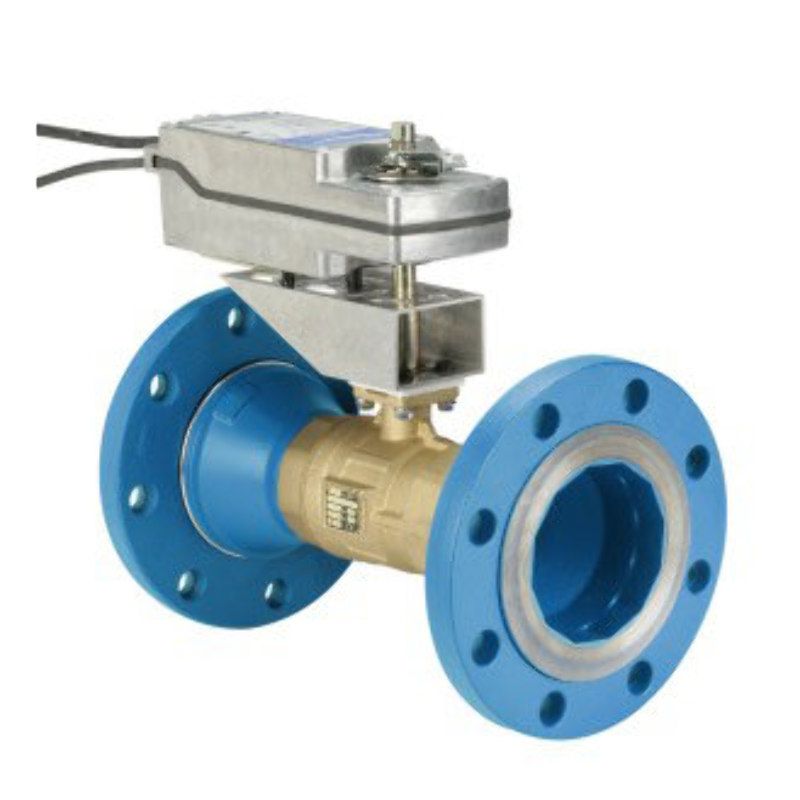

Johnson Controls VG12A5JU+92NBGC Model VG12A5JU Flanged Trim Ball Valve with Model M9220-BGC-3 Spring-Return Electric Actuator with Two Switches, Two Way, Valve Open

Product Description

The Johnson Controls VG12A5JU+92NBGC Flanged Trim Ball Valve, equipped with the Model M9220-BGC-3 Spring-Return Electric Actuator, is designed primarily for managing the flow of hot water, chilled water, and glycol solutions in HVAC systems. This valve is part of the VG1000 Series, which includes valves of various sizes: 2-1/2 inches, 3 inches, and 4 inches (DN65, DN80, and DN100).

• Close off pressure rating of 100 psi for two-way valves
• 50 psi for three-way valves ensures tight shutoff
• Available in two- and three-way configurations

Product Highlights

The VG1000 Series flanged ball valves regulate fluid flow in HVAC systems. These valves are suitable for hot water, chilled water, and glycol solutions. The ASME Class 150 flanged valves are compatible with both spring-return and non-spring-return actuators.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG12A5JU+92NBGC
• Manufacturer: Johnson Controls, Inc
• Category: Industrial & Scientific
• Subcategory: Ball Valves

Technical Specifications

• Close off Pressure Rating: 100 psi for Two-Way Valves, 50 psi for Three-Way Valves
• Valve Size: 2-1/2 inches, 3 inches, 4 inches (DN65, DN80, and DN100)
• Class: ASME Class 150
• Actuator: Spring-Return Electric Actuator
• Configurations: Two-Way, Three-Way
• Model: M9220-BGC-3
• Usage: Hot Water, Chilled Water, Glycol Solutions
• Series: VG1000
