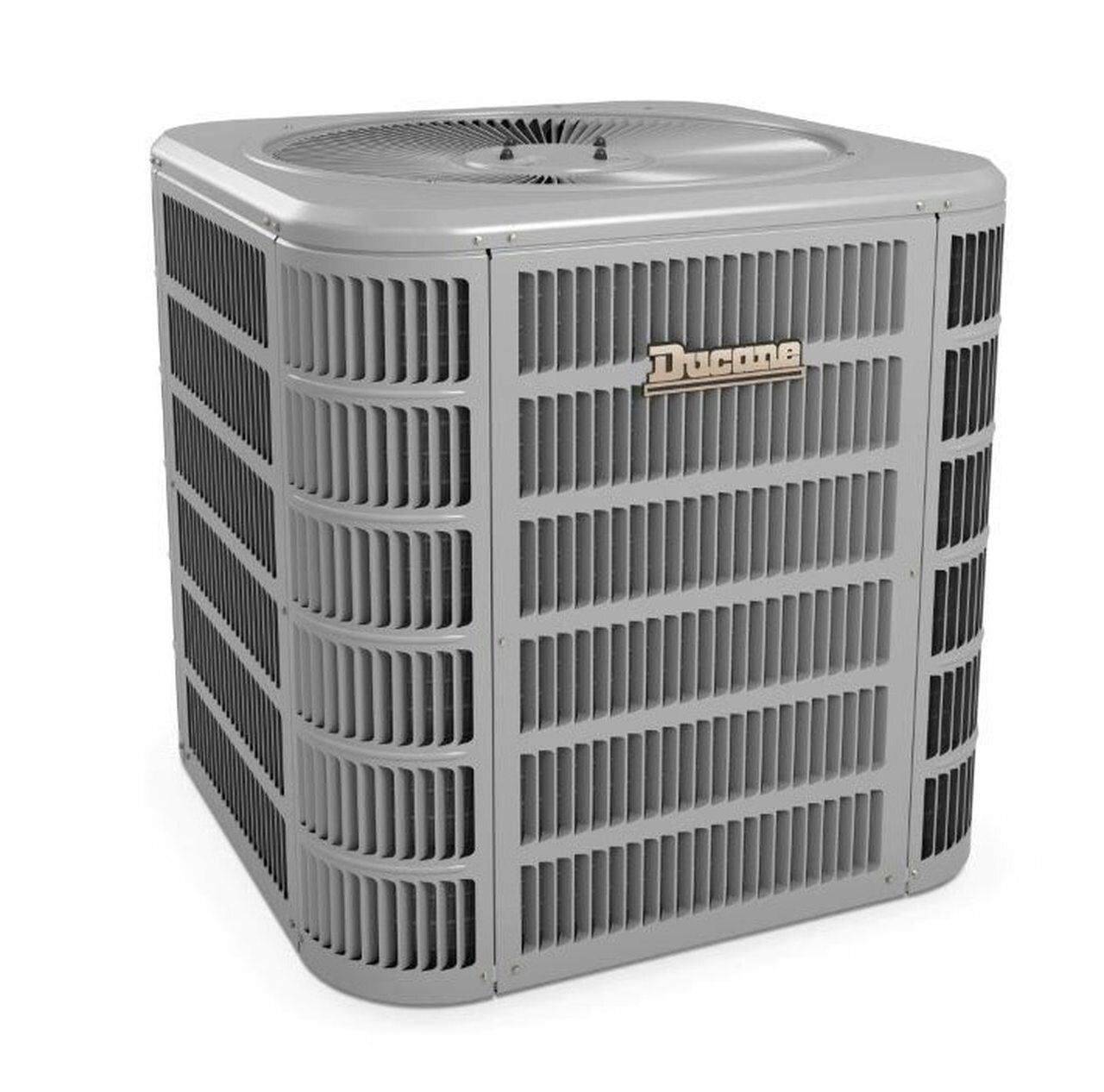

Ducane 4.0 Ton 14+ SEER Condensing Unit

The 4AC16L delivers significant energy savings and efficiencies of up to 16 SEER when paired with a matched Ducane variable-speed or constant-torque furnace or air handler

Overview:

• 4.0 Ton 14+ SEER Condensing Unit
• 28.25 Inches Width x 28.25 Inches Depth
• 3/8LL 7/8SL
• 45A MOCP
• 255 Lbs - Ships via Freight

Compressor:

• High-efficiency scroll compressor
• Internally protected against high temperature motor overload conditions
• Heavy-duty materials

Cabinet:

• Full metal louvered construction to protect the coil/hail protection
• Individual louver panels; 4 screws to remove for ease of coil cleaning and service
• Corner-mounted controls for easy service
• Baked polyester paint finished over galvanized steel for maximum durability
• 45-degree offset valves for easy service

Coils:

• Omniguard total corrosion protection technology designed coil
• Enhanced tube-and-fin coil design featuring MHT Technology
• Lanced fins for maximum heat transfer
• Every coil factory tested for leakproof construction
• Raised coil prevents debris from impeding airflow

Components:

• Factory installed high pressure switch
• Thread-on pressure switches with Schrader core for simple, quick replacement
• Filter drier shipped loose for installation flexibility
• Fan orifice for smoother airflow and sound level reduction
• Charged for 15 feet of line set

Warranty:

• 10 year limited warranty on compressor
