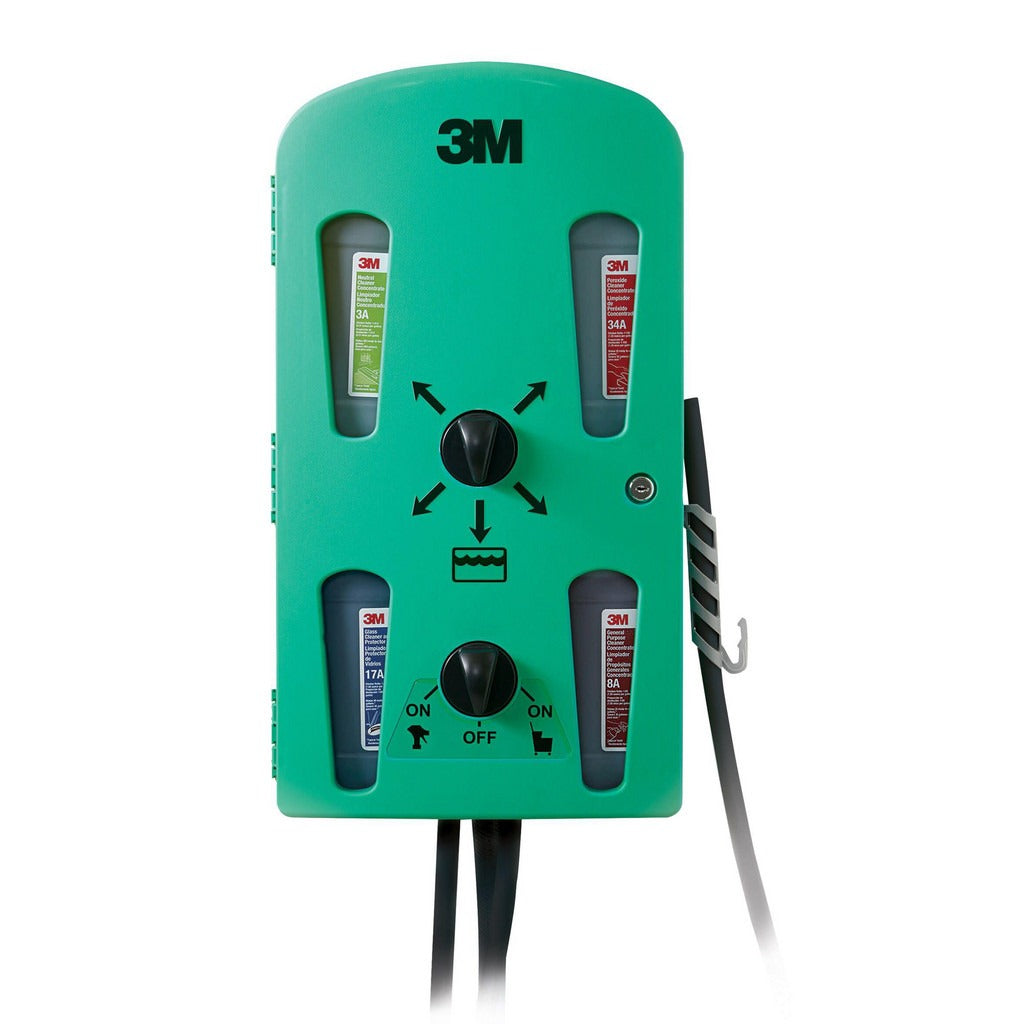

3M 7010342254 Wall Mount Chemical Proportioner 4 Product

Product Description

The 3M 7010342254 is a wall-mount chemical proportioner designed to accurately dilute cleaning and chemical concentrates for commercial and institutional cleaning applications. It accommodates up to four products simultaneously and features push-button adjustment for selecting the desired concentrate. The unit operates across an inlet pressure range of 20 to 90 psi and delivers a flow rate of 2 GPM. The body is constructed of ABS. This proportioner is part of the 3M Flow Control System (FCS), which is tested under laboratory conditions to deliver consistent dilution accuracy across the full rated pressure range. Installation is typically performed by facilities maintenance technicians or qualified service professionals.

The 3M 7010342254 is suited for use in commercial facilities, healthcare environments, food service operations, and institutional settings where multiple cleaning concentrates must be diluted and dispensed from a single wall-mounted station. It is designed for use with 3M Flow Control Concentrates supplied in bottle containers. The push-button interface allows operators to switch between up to four chemical products at a controlled dilution ratio. The system is ASSE 1055 listed, confirming compliance with standards for chemical dispensing equipment.

Key Features

• Accommodates up to 4 chemical concentrate products at one station
• Push-button product selection for straightforward operation
• Operates at inlet pressures from 20 to 90 psi with a 2 GPM flow rate
• ABS body construction for chemical resistance and durability
• ASSE 1055 listed chemical dispensing system
• Includes dispenser, instructions, hose attachments, wall mount template, and attachment screws

Compatibility

Designed for use with 3M Flow Control Concentrates in bottle containers. Inlet connection is push-to-connect with NPT inlet thread type; outlet connection is threaded.

Installation Notes

Installation is performed by qualified maintenance or facilities personnel. Shut off the water supply and relieve line pressure before making any inlet connections. Inlet pressure must be within the 20 to 90 psi operating range before commissioning the unit. Refer to the included wall mount template and instructions for proper anchor placement and connection sequencing.
