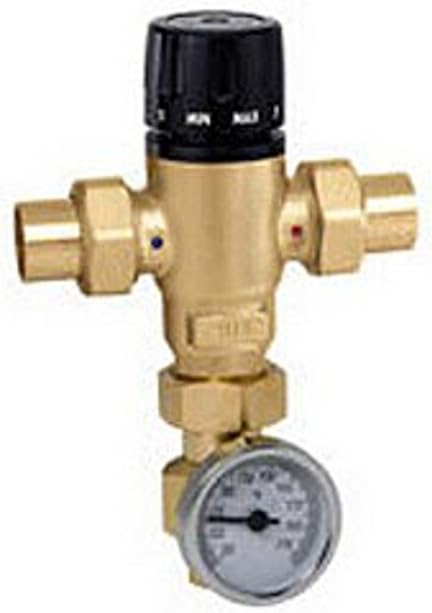

Caleffi 521519AC Mixing Valve Low-Lead Brass 3/4 Inch Sweat Thermostatic with Checks and Temperature Gauge ASSE 1017

Product Description

The Caleffi MixCal 521519AC is a 3/4 inch sweat thermo mixing valve designed to accurately control water temperature in heating and domestic hot water systems. This valve compensates for fluctuations in both temperature and pressure, ensuring a consistent output.

• Equipped with built-in checks and a temperature gauge for precise control.
• Features a fail-cold safety function, which shuts off the hot water port in the event of a malfunction, ensuring user safety.
• Constructed from low-lead brass for durability and compliance with low lead plumbing laws.

Standard Information

• Brand: Caleffi
• MPN: 521519AC
• Material: Brass
• Connection Type: Sweat
• Maximum Pressure: 200 psi

Technical Specifications

• Nominal Size: 3/4 inch
• Flow Capacity: 1 gpm
• Maximum Temperature: 150 degrees F
• Minimum Temperature: 85 degrees F
• Standards Met: ASSE 1017, Lead Plumbing Law Certified by IAPMO R&T
