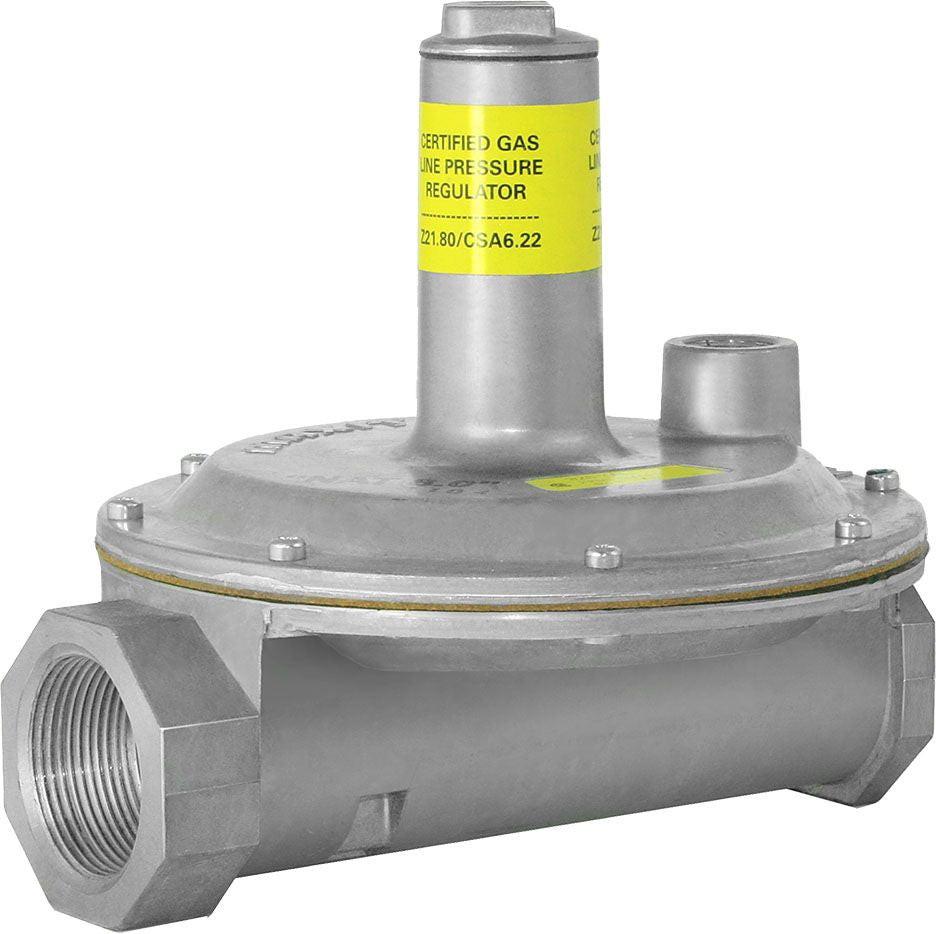

Maxitrol 325-5L-3/4 Line Pressure Regulator Lever Acting NPT 3/4 Inch Replacement Maxitrol 325-5AL-3/4

Product Description

The Maxitrol 325-5L-3/4 is engineered for precision gas flow control, featuring lever acting mechanism and NPT 3/4 inch threading, suitable for residential, commercial, and industrial settings.

• Designed for both natural and LP gas types.
• Features linkage assembly for accurate control.
• Rated for up to 2 PSI and temperature range from -40 to 205 degrees Fahrenheit.

Product Highlights

Maxitrol's regulator offers robust aluminum construction and threaded connections, ensuring durability and easy installation. The device includes safety measures like a vent limiter to enhance operational security.

Technical Specifications

• Body Material: Aluminum
• Connection Type: NPT
• Pressure Rating: 2 PSI, 7 Inch WC (wc for Water Column)
• Temperature Rating: -40 to 205°F
• BTU Capacity: Maximum 600,000 Btu/hr
• Applicable Standards: ANSI Z21.80/CSA 6.22, CSA, CE
• Mounting Type: Horizontal Upright
