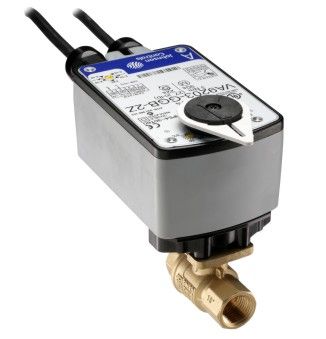

Johnson Controls VG1241BG+943BUB Two-Way Brass Ball Valve with Electric Actuator

Product Description

The Johnson Controls VG1241BG+943BUB is a robust two-way brass ball valve designed for regulating water and low-pressure steam flow in HVAC systems. Equipped with NPT end connections and compatible with various Johnson Controls electric actuators, this valve ensures efficient on/off, floating, or proportional flow control.

• Compatible with VA9104, M9106, M9109, and M9100 Series Non-Spring Return Actuators
• Can also be used with VA9203 and VA9208 Series Spring Return Actuators
• Designed for both hot and chilled water applications

Product Highlights

Constructed from forged brass, this ball valve supports a static pressure rating of up to 580 psig, highlighting its durability and reliability in demanding conditions. The valve is available in sizes ranging from one-half to two inches, catering to different system requirements.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG1241BG+943BUB

Technical Specifications

• Connection Type: NPT end connections
• Body Material: Forged brass
• Pressure Rating: 580 psig
• Valve Size Range: one-half to two inches
• Actuator Compatibility: VA9104, M9106, M9109, M9100, VA9203, VA9208 series
