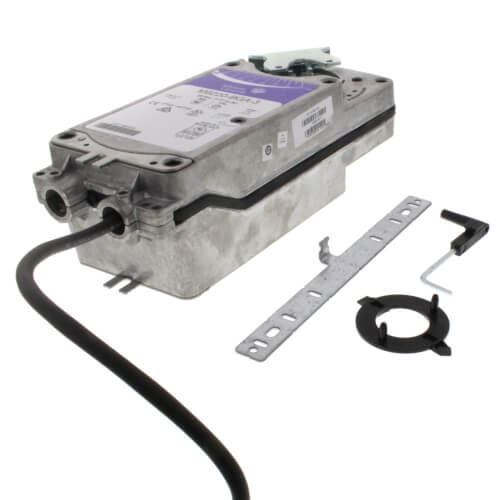

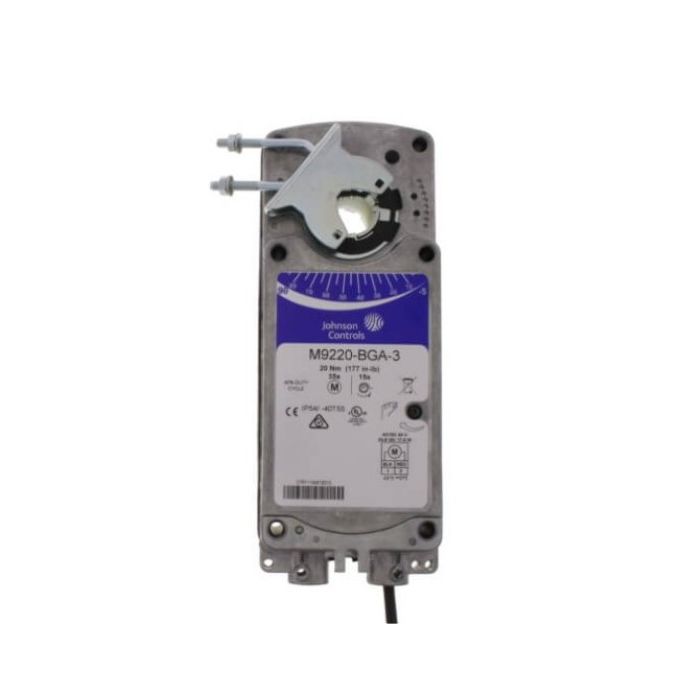

Johnson Controls M9220-BGA-3 Direct Coupled, 177 lb-in. Spring Return

Product Description

The Johnson Controls M9220-BGA-3 is a direct-coupled actuator with a torque rating of one hundred seventy-seven pound-inches. This actuator operates at twenty-four volts and is equipped with a spring return feature. It is suitable for HVAC systems where precise control is needed.

• Reversible mounting design allows for flexible installation.
• Electronic stall detection enhances actuator life by preventing overload.
• Easy manual override with auto-release feature.

Product Highlights

This actuator is ideal for applications that require reliable spring return functionality.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: M9220-BGA-3

Technical Specifications

• Torque: 177 lb-in
• Voltage: 24 VAC
• Power Consumption: 24.6 VA Running, 7.7 VA Holding
• Operating Conditions: -40 F to 131 F
• Electrical Connection: 48 in. wire leads
• Weight: 6.79 lbs
• Dimensions: 17.15 in x 7.15 in x 4.15 in
