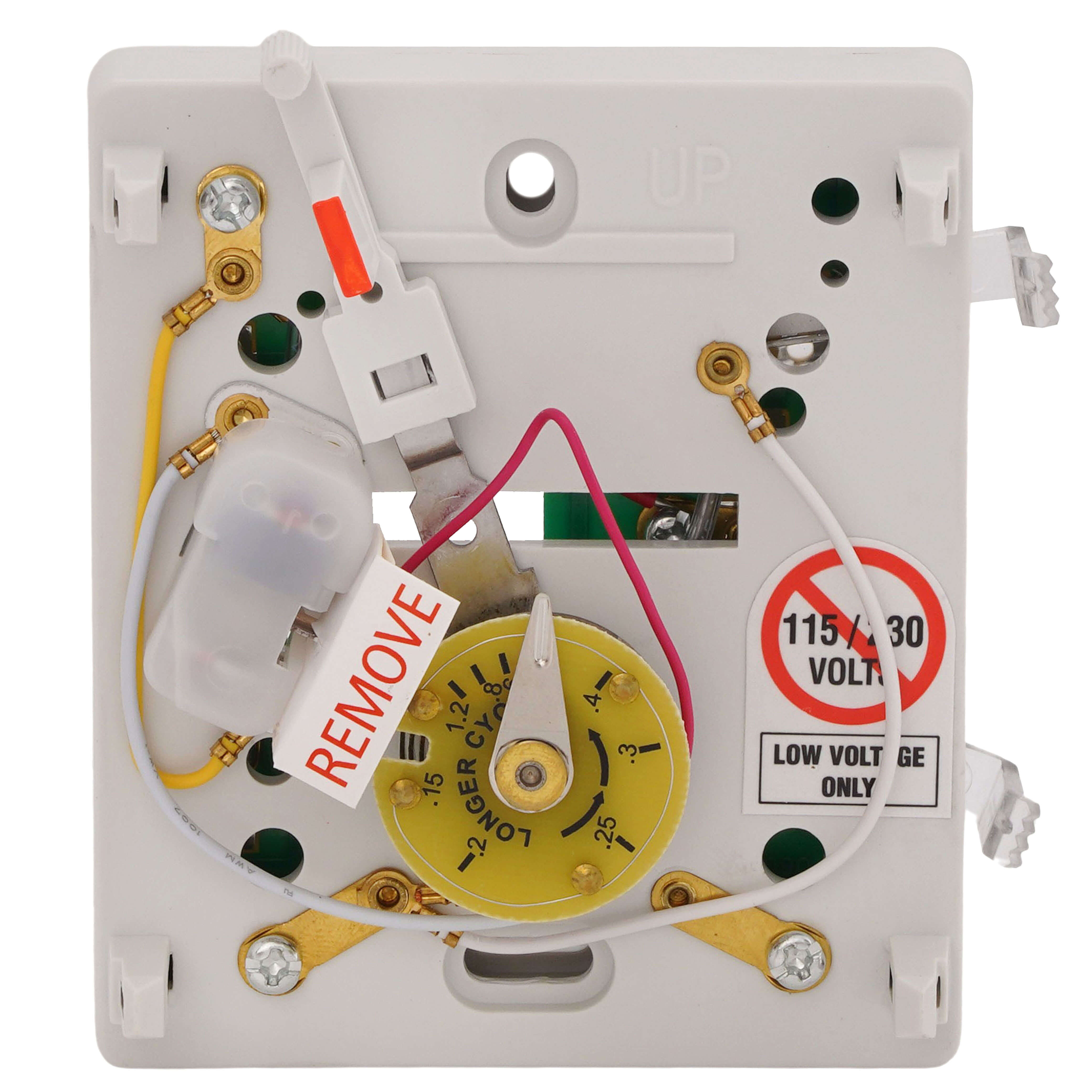

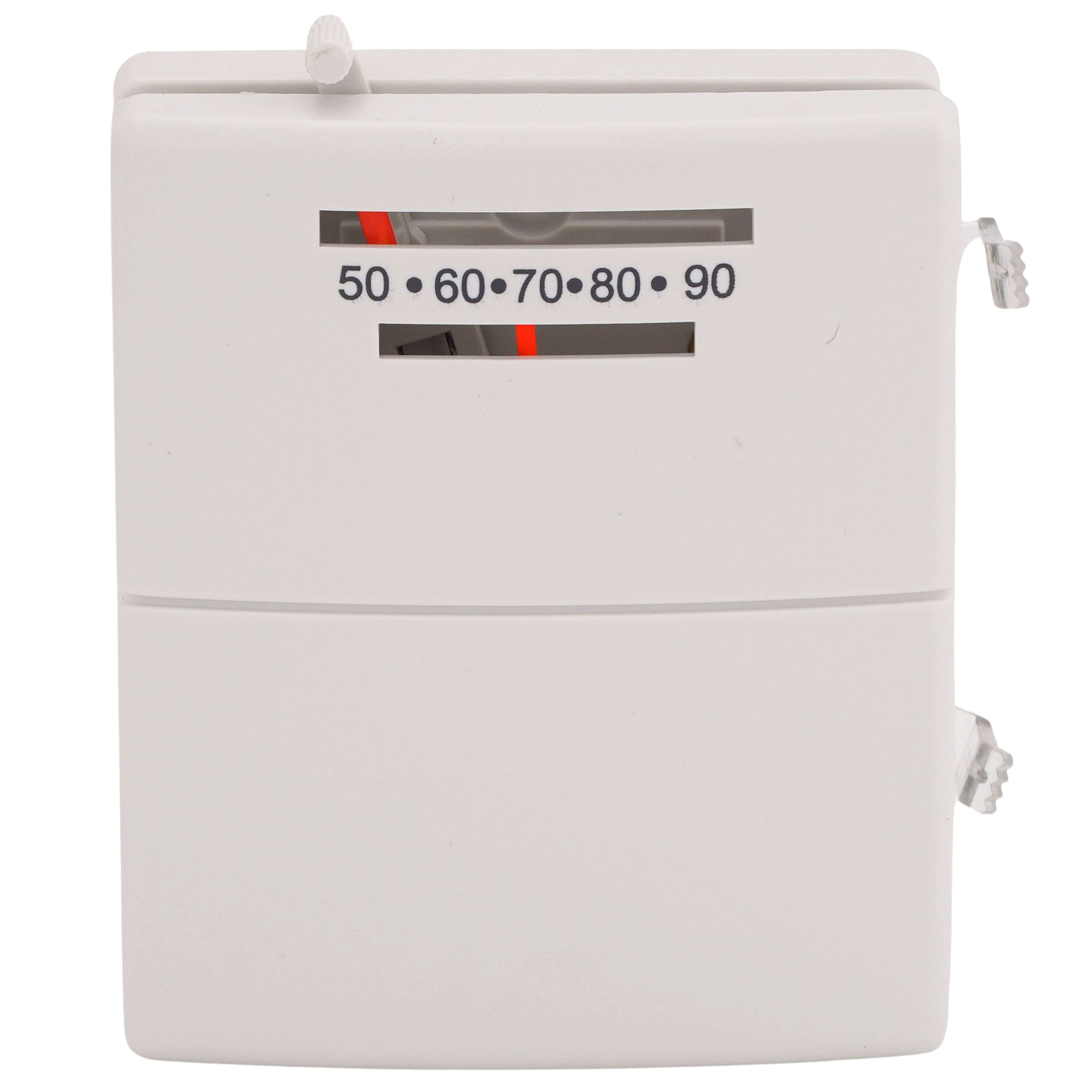

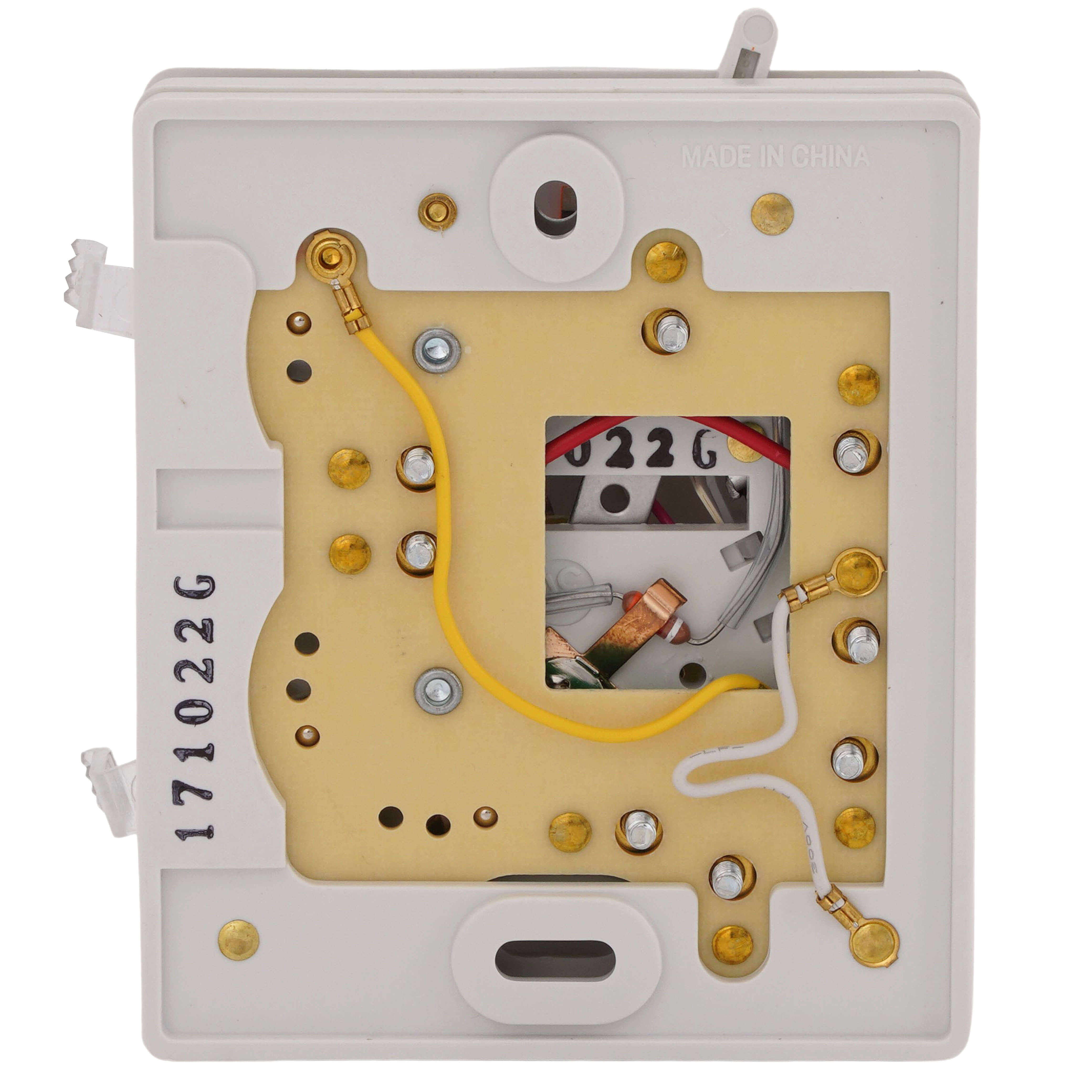

Lux PSM40SA Heating/Cooling Mechanical Thermostat 1 Heat/1 Cool Manual

Product Description

The Lux PSM40SA Heating/Cooling Mechanical Thermostat is designed for single-stage heat and cool systems. This thermostat includes an adjustable heat anticipator and features a snap action mechanism. It is mercury-free and has a vertical mount.

• Adjustable heat anticipator
• Snap action mechanism
• Mercury-free

Product Highlights

This Lux thermostat supports heat and cool systems. Manual control with switch settings for fan and system modes. The thermostat's vertical orientation and low voltage operation make it a versatile choice.

Product Information

Standard Information

• Brand: Lux
• MPN: PSM40SA

Technical Specifications

• Type: Mechanical
• Voltage: 24VAC
• Amperage: 0.15-1.2 A
• Mounting: Vertical
• Width: 3 inches
• Height: 3.5 inches
• Depth: 1.375 inches
• Temperature Range: 45-90°F
• Fan Settings: Auto, On
• Changeover: Manual
• Application: Single-Stage (Heat/Cool)
• Wiring: B, A, W, O, Rh, G, Y, Rc
• Power Method: Hardwired
• System/Fan Settings: Cool-Heat-Off/Auto-On
• Operating Temperature Range: 32-95°F
• Operating Humidity Range: 20%-90%
• Country of Origin: China
