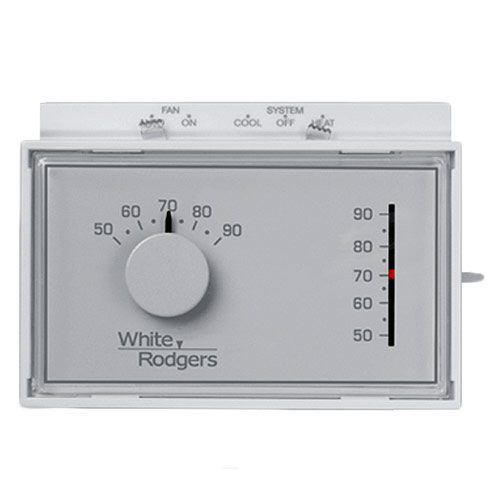

White Rodgers 1F56N-444 Mercury Free Mechanical Thermostat, Heat-Cool

Product Description

The White Rodgers 1F56N-444 is a mercury-free mechanical thermostat designed for heating and cooling systems. This reliable thermostat is suitable for both residential and commercial applications. It provides an efficient and safe temperature control solution.

• Mercury-free snap action contacts with dust cover
• Resistant to vibration
• Can be mounted to wall or junction box

Product Highlights

This thermostat features a built-in bimetal thermometer and offers options for both 24 Volts and 750 mV systems. It is designed to operate without the use of mercury, making it environmentally friendly.

Product Information

Standard Information

• Brand: White Rodgers
• MPN: 1F56N-444

Technical Specifications

• Type: Mercury Free
• Voltage Rating: 20 to 30 VAC
• Control Range: 50 to 90 deg F
• Mounting Type: Horizontal
• System Switching: Heat/Cool
• Number of Stages: 1
• Humidity Range: 0 to 90% Non-Condensing
• Dimensions: 3-1/4 in W x 1-5/8 in D x 4-1/2 in H
• Terminal Designations: RC, RH, W, Y, G, O/B, A
