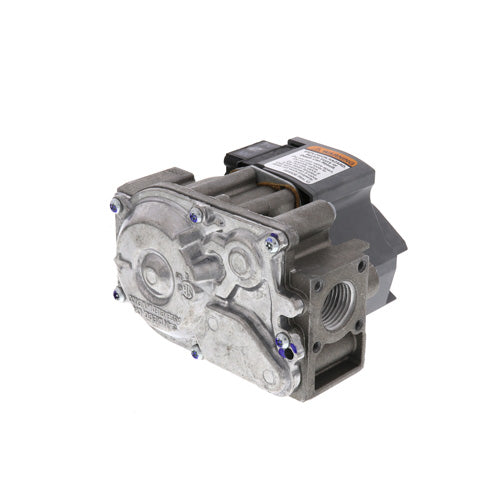

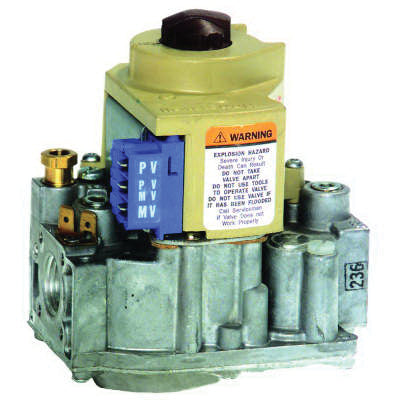

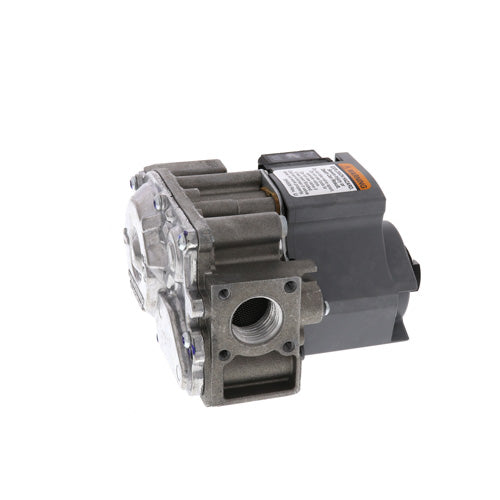

Resideo VR8204H1006 Gas Control Valve 24 VAC 150K BTU 1/2 x 1/2

Product Description

The Resideo VR8204H1006 Gas Control Valve is a versatile solution for 24 VAC intermittent pilot appliances. It comes equipped with a manual valve, two automatic operators, servo pressure regulator, and pilot adjustment features.

• Natural gas compatible
• 24 VAC operation
• 1/2 inch inlet/outlet connections

Product Highlights

This valve is compact and provides dual automatic valves operated by solenoid and diaphragm mechanisms, ensuring reliable operation and safety.

Product Information

Standard Information

• Brand: Resideo
• Model: VR8204H1006
• Voltage: 24
• Fuel Type: Natural Gas
• Inlet/Outlet Size: 1/2 inch

Technical Specifications

• Type: Single Stage
• Ignition Type: Intermittent Pilot
• Body Pattern: Straight-through
• Capacity: 150,000 BTU/hr
• Pressure Ratings: 1/2 psi
• Pressure Regulator Setting: 3.5 inches wc; Step Setting: 0.9 inches wc
• Mounting: 0 to 90 degrees in any direction
