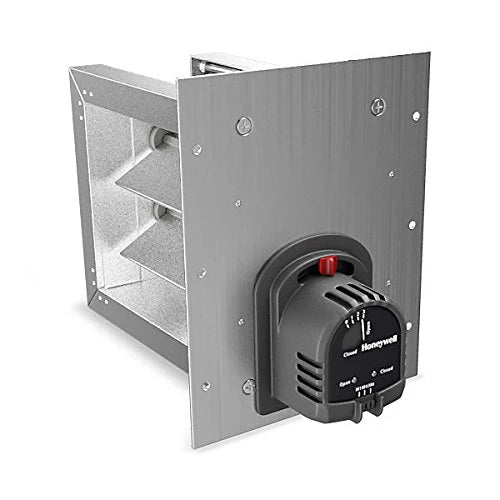

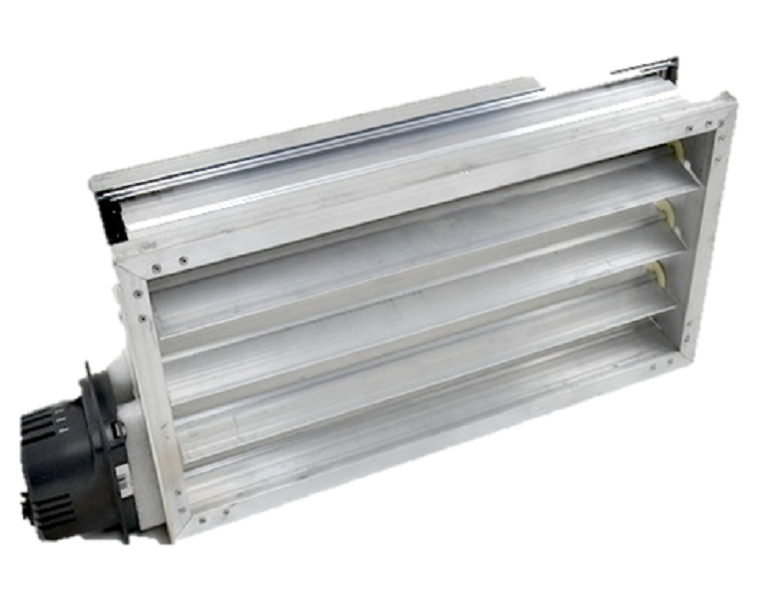

Honeywell ZD20X10TZ Parallel Blade Zone Damper 24V 20x10 Inch

Product Description

The Honeywell ZD20X10TZ Parallel Blade Zone Damper is a 24V rectangular damper designed for HVAC systems. This damper measures 20 inches by 10 inches and features a spring-return motor for reliable operation. The TrueZONE design ensures easy installation and maintenance.

• Reliable spring-return motor
• Parallel blade for low leakage
• Easy wiring with two-wire installation

Product Highlights

This Honeywell zone damper is built for controlling airflow in HVAC systems. Its durable aluminum frame and blades ensure longevity and performance.

Product Information

Standard Information

• Manufacturer: Honeywell
• Country of Manufacture: Mexico
• Package Dimensions: 12.4 L x 7 W x 32.5 H

Technical Specifications

• Size: 20 x 10 inches
• Material: Aluminum
• Type: Blade
• Shape: Rectangular
• Series: ZD, TrueZONE
• Timing: 30 sec Power Open/10 sec Spring Return
• Motor Type: Power Closed, Spring Open
• Blade Action: Parallel
• Rotation Angle: 90 degrees
• Voltage Rating: 24 V
• Temperature Rating: 40 - 140 degrees F
• Electrical Connection: 2-Wire
