White-Rodgers 36H33-412 36H Series Single Stage Slow Open 3/4 in Inlet x 3/4 in Outlet HSI / DSI / Intermittent / Proven Pilot Gas Valve - 24V

Product Description

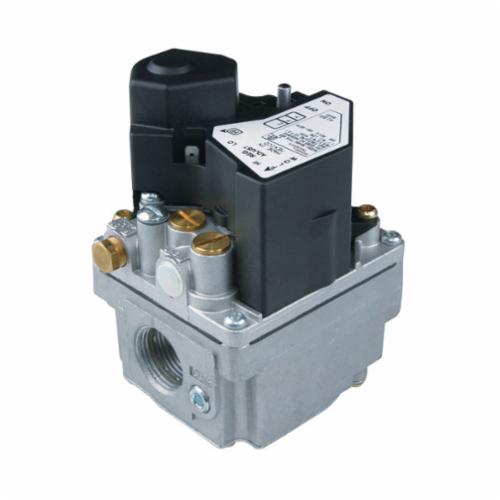

The White-Rodgers 36H33-412 Universal Single Stage Slow Open Gas Valve is an essential component for HVAC systems. This versatile gas valve is suitable for various intermittent ignition systems, including direct ignition and proven pilot systems.

• Adjustable regulator for precise control.
• Designed for quiet operation and includes tamper-resistant screws.
• Features inlet and outlet screens and an electric on/off switch for added safety.

Product Highlights

This single-stage gas valve from White-Rodgers offers reliable performance for HVAC professionals. It supports natural gas and LP with a temperature range of -40 to 175 degrees Fahrenheit, making it suitable for a wide range of applications.

Product Information

Standard Information

• Brand: White-Rodgers
• MPN: 36H33-412
• Category: HVAC Controls
• Weight: 2.65 lbs

Technical Specifications

• Voltage: 24 VAC
• Connection Size: 3/4 inches
• Fuel Type: Natural Gas/LP
• Cycle/Hertz: 50/60 Hz
• Nominal Capacity: 300,000 Btu/cu-ft
• Ignition Type: HSI/DSI/Intermittent/Proven Pilot
• Temperature Range: -40 to 175 Fahrenheit
• Pressure Rating: 0.5 psi
• Weight: 3.14 pounds
• Dimensions: 6.5 inches (L) x 5 inches (W) x 3.75 inches (H)
• Country of Origin: MEX
• Prop 65: Yes
