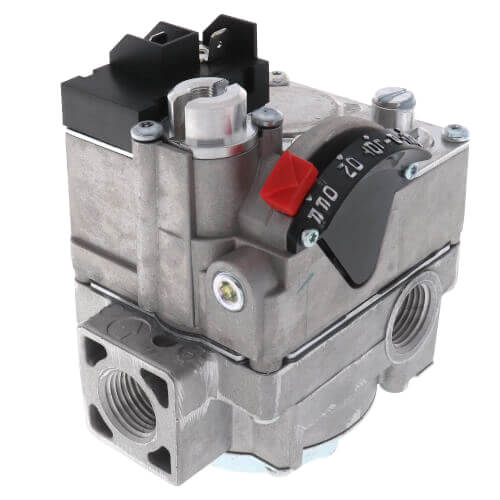

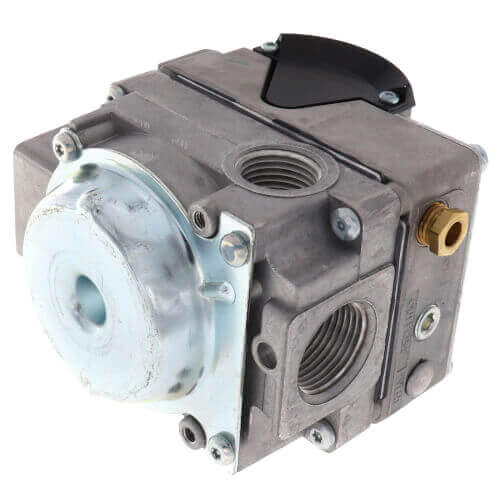

Robertshaw 720-050 1/2 x 1/2 Hot Surface Ignitor Gas Valve 24V 150,000 BTU

Product Description

The Robertshaw 720-050 Hot Surface Ignitor Gas Valve is designed for various heating applications and ensures precise flow control. It features a 24V operation suitable for diverse industrial power systems. This valve includes 1/2 x 1/2 NPT connections, making it compatible with standard piping. The slow opening ensures gradual gas flow, and it handles a capacity of 150,000 BTU. An LP kit is included for propane applications, ensuring versatility and durability in demanding environments.

• 24V operation for various industrial power systems
• 1/2 x 1/2 NPT connections
• 150,000 BTU capacity

Product Highlights

Suitable for industrial use, this gas valve features robust construction and corrosion resistance, ensuring long-lasting performance. It replaces models 7200DER-SO-S7C and 7200DER-S7C, making it ideal for legacy systems.

Product Information

Standard Information

• Brand: Robertshaw
• Model: 720-050

Technical Specifications

• Electrical Ratings: 24 VAC, 0.5 amps, 50/60 Hz
• Pressure regulator: Natural gas set at 3.5 W.C., L.P. gas set at 11.0 W.C.
• Pilot Outlet: 1/4 inch tubing
• Ambient Temperature Range: -40 to 175 degrees Fahrenheit
• Maximum Inlet Pressure: 14 W.C. (1/2 PSI)
