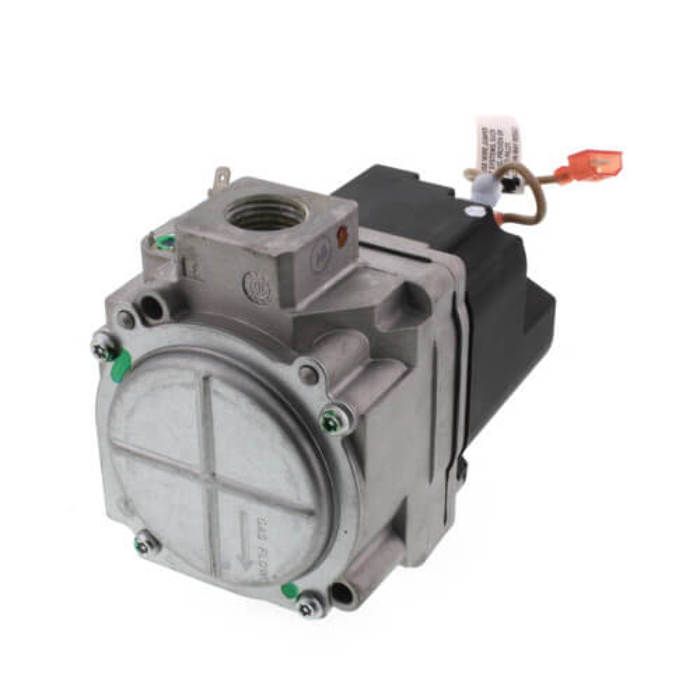

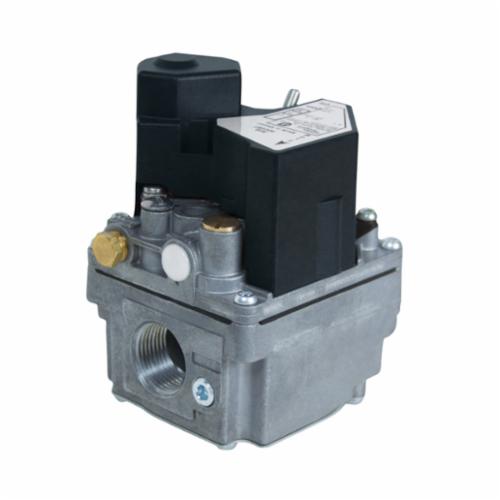

White Rodgers 36H32-304 Single Stage DSI/HSI/Intermittent

Product Description

The White Rodgers 36H32-304 is a single stage gas valve designed for DSI, HSI, and intermittent ignition systems. This valve operates at twenty-four volts, allowing for efficient gas flow control. The combination of features makes it suitable for multiple applications including residential and commercial HVAC systems.

• Fast opening for quick response
• Electric on/off switch for precise control
• Includes LP conversion kit and necessary fittings

Product Highlights

This valve is ideal for controlling the flow of natural gas or liquid propane in heating systems.

Product Information

Standard Information

• Brand: White Rodgers
• MPN: 36H32-304

Technical Specifications

• Voltage: 24 VAC
• Inlet Size: 1/2 inch
• Outlet Size: 3/4 inch
• Ignition Type: HSI/DSI/Intermittent
• Pressure Rating: 0.5 psi
• Nominal Capacity: 230000 Btu/cu-ft
• Temperature Rating: -40 to 175 degrees F
• Country of Origin: MX
• Manufacturer Name: Emerson Electric
