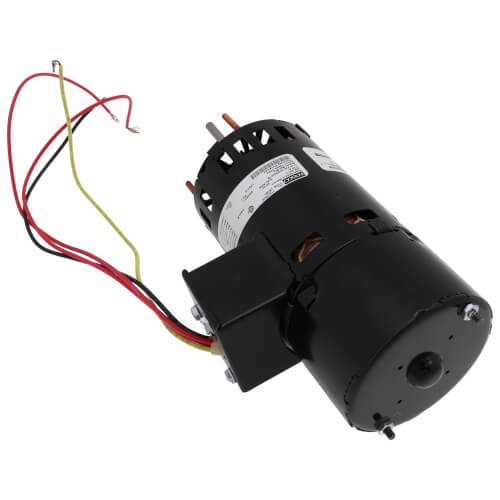

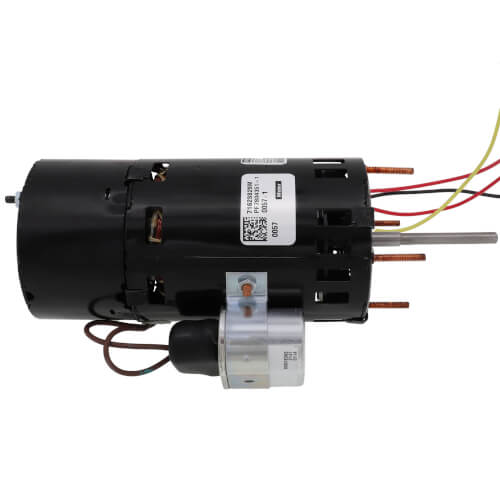

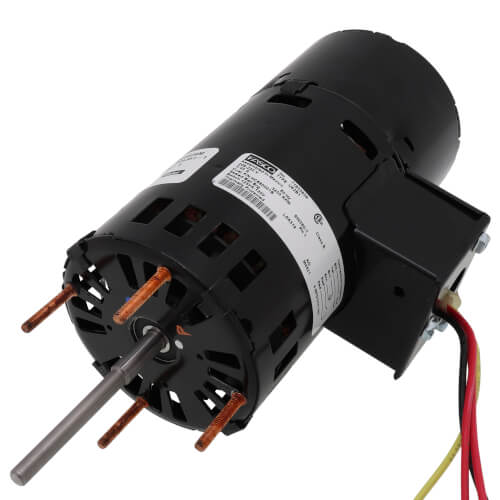

Carrier HC680001 1/16HP 230V Comb Motor

Product Description

The Carrier HC680001 is a blower motor designed to deliver reliable performance in HVAC systems. This 1/16 horsepower motor operates at 3450 RPM and 230 volts, making it suitable for various applications including fans, blowers, and pumps.

• 1/16 HP
• 230V
• 3450 RPM

Product Highlights

This motor features a robust construction with a steel frame and aluminum flange for durability. It draws 1.5 amps and is compatible with multiple voltages ranging from 208 to 230 volts.

Product Information

Standard Information

• Brand: Carrier
• MPN: HC680001
• Model: HC680001

Technical Specifications

• Horsepower: 1/16
• Voltage: 230V
• RPM: 3450
• Shaft Size: 1/4 x 2.1 inches
• Rotation: CCW
• Capacitor: 4 uf 370 VAC
• FLA: 0.5
• Weight: 5.03 lbs
• Length: 12.3 inches
• Width: 6.35 inches
• Height: 4.9 inches
• For Use With: Mfr. Model Number 48DJD005-510
• Country of Origin: Mexico
