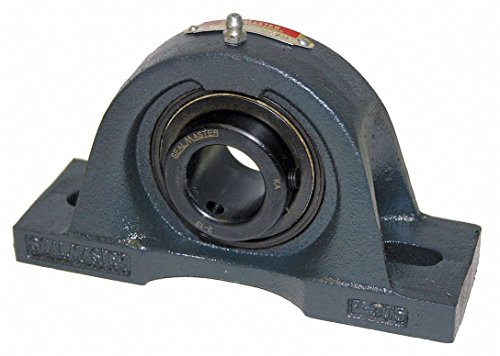

SealMaster MP-39 Pillow Block Bearing with Set Screw Lock

Product Description

The SealMaster MP-39 pillow block bearing provides robust performance for industrial applications. This precision ball bearing is crafted from high-quality 52100 chrome steel and encased in a durable cast iron housing. It is particularly designed for reliable use with a set screw locking type for secure shaft mounting.

• Dynamic load capacity up to 13,971 pounds.
• Temperature range from -20 degrees to 220 degrees Fahrenheit.
• Dual bolt mounting for increased stability.

Product Highlights

With a bore diameter of two and seven-sixteenths inches and black oxide finish, this model promises enhanced corrosion resistance and overall longevity. Its robust construction ensures optimal functionality in demanding environments.

Product Information

Standard Information

• Overall Height: 6-1/4 inches
• Overall Length: 11-1/4 inches

Technical Specifications

• Material: 52100 Chrome Steel, Cast Iron
• Locking Type: Set Screw
• Mounting Hole Center: 8 inches
• Mounting Surface to Shaft Center: 3 inches
• Bolt Hole Size: 3/4 inches
• Finish: Black Oxide
• Static Load Capacity: 10,063 lb
• Dynamic Load Capacity: 13,971 lb
