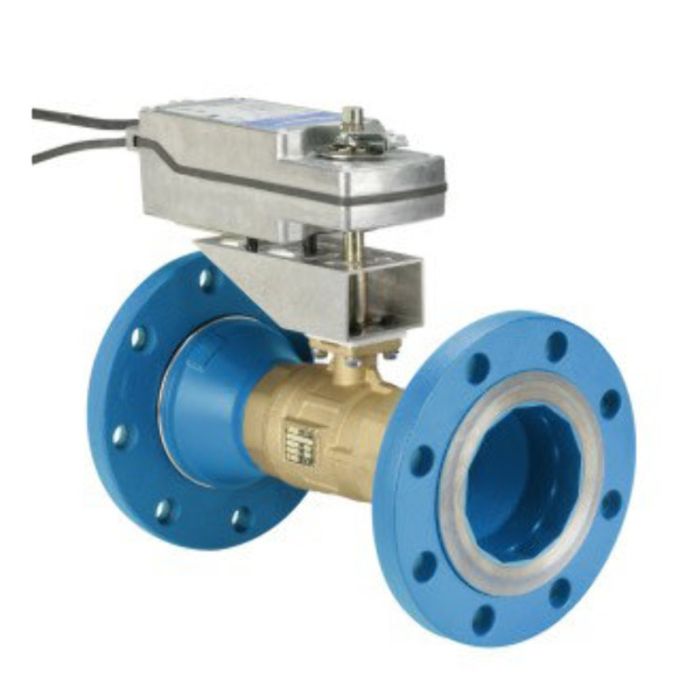

Johnson Controls VG12A5GS+92NBAC Flanged Trim Ball Valve with M9220-BAC-3 Actuator

Product Description

The Johnson Controls VG12A5GS+92NBAC is a flanged trim ball valve equipped with the M9220-BAC-3 actuator. It is designed for use in HVAC systems to control hot water, chilled water, and glycol solutions.

• Close off Pressure Rating: 100 psi for Two-Way Valves; 50 psi for Three-Way Valves
• Actuator Type: Spring-return with two switches
• Valve Type: Two-way operation

Product Highlights

Ideal for HVAC systems, this flanged ball valve provides precise control for various fluid types. It features reliable shutoff capabilities and versatile mounting options.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG12A5GS+92NBAC
• Category: Ball Valves
• Manufacturer: Johnson Controls, Inc

Technical Specifications

• Valve Size: 2.5 inches
• Configuration: Two-way
• Pressure Rating: 100 psi for two-way valves, 50 psi for three-way valves
• Actuator Model: M9220-BAC-3
• Flow Capacity: 47 Cv
• Voltage: 120V
• Number of Positions: 2 positions
• Additional Features: Auxillary switches
