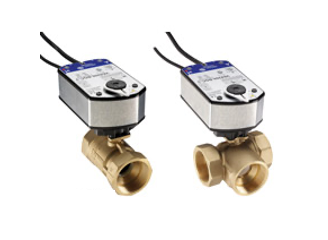

Johnson Controls VG1241FS+958BGC Model VG1241FS Two-Way Plated Brass Trim NPT End Connections Ball Valve with Model VA9208-BGC-3 Spring-Return Closed with Two Switch Electric Actuator

Product Description

The Johnson Controls VG1241FS+958BGC is a two-way plated brass ball valve designed for regulating the flow of hot or chilled water, and in some cases, low-pressure steam in HVAC systems. This valve is known for its robust design and precise control, making it suitable for various building supplies.

• Forged brass body with 580 psig static pressure rating
• Factory or field mounted to Johnson Controls actuators
• Compatible with VA9104, M9106, M9109, and M9100 Non-Spring-Return actuators

Product Highlights

This valve is built for on/off, floating, or proportional control in HVAC systems. It includes a spring-return electric actuator and is factory or field mounted for versatile application.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG1241FS+958BGC
• Model: VG1241FS
• Product Type: Valve
• Manufacturer: Johnson Controls, Inc

Technical Specifications

• Body Material: Forged Brass
• Pressure Rating: 580 psig
• Connection Type: NPT End Connections
• Compatible Actuators: VA9104, M9106, M9109, M9100, VA9203, VA9208
• Valve Size Range: 1/2 inch to 2 inches
• Application: Hot or Chilled Water, Low-Pressure Steam
• Control Type: On/Off, Floating, Proportional
• Actuator Type: Spring-Return Electric
