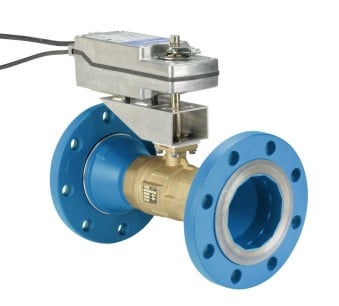

Johnson Controls VG12A5GS+94NGGA Model VG12A5GS Flanged Trim Ball Valve with Model M9220-GGA-3 Spring-Return Electric Actuator Without Switches, Valve Closed

Product Description

The Johnson Controls VG12A5GS+94NGGA flanged trim ball valve is engineered for regulating the flow of hot water, chilled water, and 50% glycol solutions in HVAC systems. This valve is part of the VG1000 Series, suitable for 2-1/2 inches, 3 inches, and 4 inches sizes (DN65, DN80, and DN100). This series boasts ASME Class 150 flanged valves in both two-way and three-way configurations.

• Designed for efficient flow regulation in HVAC systems.
• Compatible with a range of sizes from 2-1/2 inches to 4 inches.
• Available in two-way and three-way configurations.

Product Highlights

This valve assembly includes the Johnson Controls Model M9220-GGA-3 spring-return electric actuator without switches. It provides reliable and precise control for HVAC applications, ensuring efficient system operations.

Product Information

Standard Information

• Brand: Johnson Controls
• Model: VG12A5GS+94NGGA
• Manufacturer: Johnson Controls, Inc

Technical Specifications

• Close off Pressure Rating: 100 psi for Two-Way Valves; 50 psi for Three-Way Valves
• Valve Sizes: 2-1/2 inches, 3 inches, 4 inches
• Valve Type: Flanged Ball Valve
• Actuator Type: Spring-Return Electric Actuator
• Actuator Model: M9220-GGA-3
• Flow Media: Hot Water, Chilled Water, 50% Glycol Solutions
• ASME Class: 150
• Part ID: 101882
