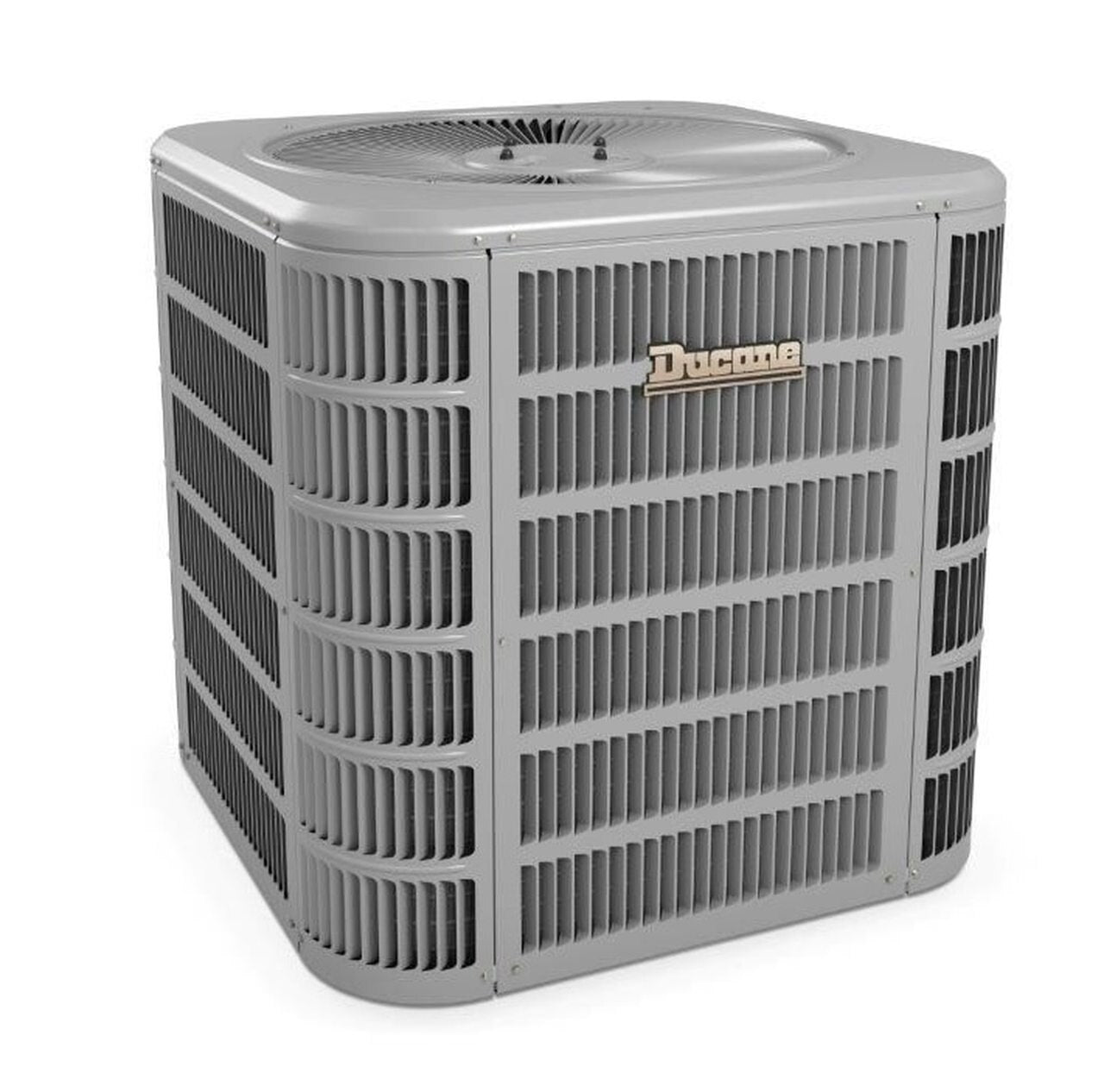

Ducane 2.0 Ton 14+ SEER Condensing Unit

SKU / MPN:
4AC16L24P-50A
SKU / MPN: 4AC16L24P-50A

$2,065.99
Notify Me

Buy a system bundle and save up to 10%!

SHOP ALL BUNDLES WITH THIS PRODUCT INCLUDED

Secure
Ordering

Easy
Returns

100% Fit
Guarantee

Expert
Advice

Fast
Shipping

HAVE A QUESTION? Our friendly team is ready to help!

Product Information

The 4AC16L delivers significant energy savings and efficiencies of up to 16 SEER when paired with a matched Ducane variable-speed or constant-torque furnace or air handler

Overview:

  • 2.0 Ton 14+ SEER Condensing Unit
  • 28.25 Inches Width x 28.25 Inches Depth
  • 3/8LL 3/4SL
  • 30A MOCP
  • 171 Lbs - Ships via Freight

Compressor:

  • High-efficiency scroll compressor
  • Internally protected against high temperature motor overload conditions
  • Heavy-duty materials

Cabinet:

  • Full metal louvered construction to protect the coil/hail protection
  • Individual louver panels; 4 screws to remove for ease of coil cleaning and service
  • Corner-mounted controls for easy service
  • Baked polyester paint finished over galvanized steel for maximum durability
  • 45-degree offset valves for easy service

Coils:

  • Omniguard total corrosion protection technology designed coil
  • Enhanced tube-and-fin coil design featuring MHT Technology
  • Lanced fins for maximum heat transfer
  • Every coil factory tested for leakproof construction
  • Raised coil prevents debris from impeding airflow

Components:

  • Factory installed high pressure switch
  • Thread-on pressure switches with Schrader core for simple, quick replacement
  • Filter drier shipped loose for installation flexibility
  • Fan orifice for smoother airflow and sound level reduction
  • Charged for 15 feet of line set

Warranty:

  • 10 year limited warranty on compressor
