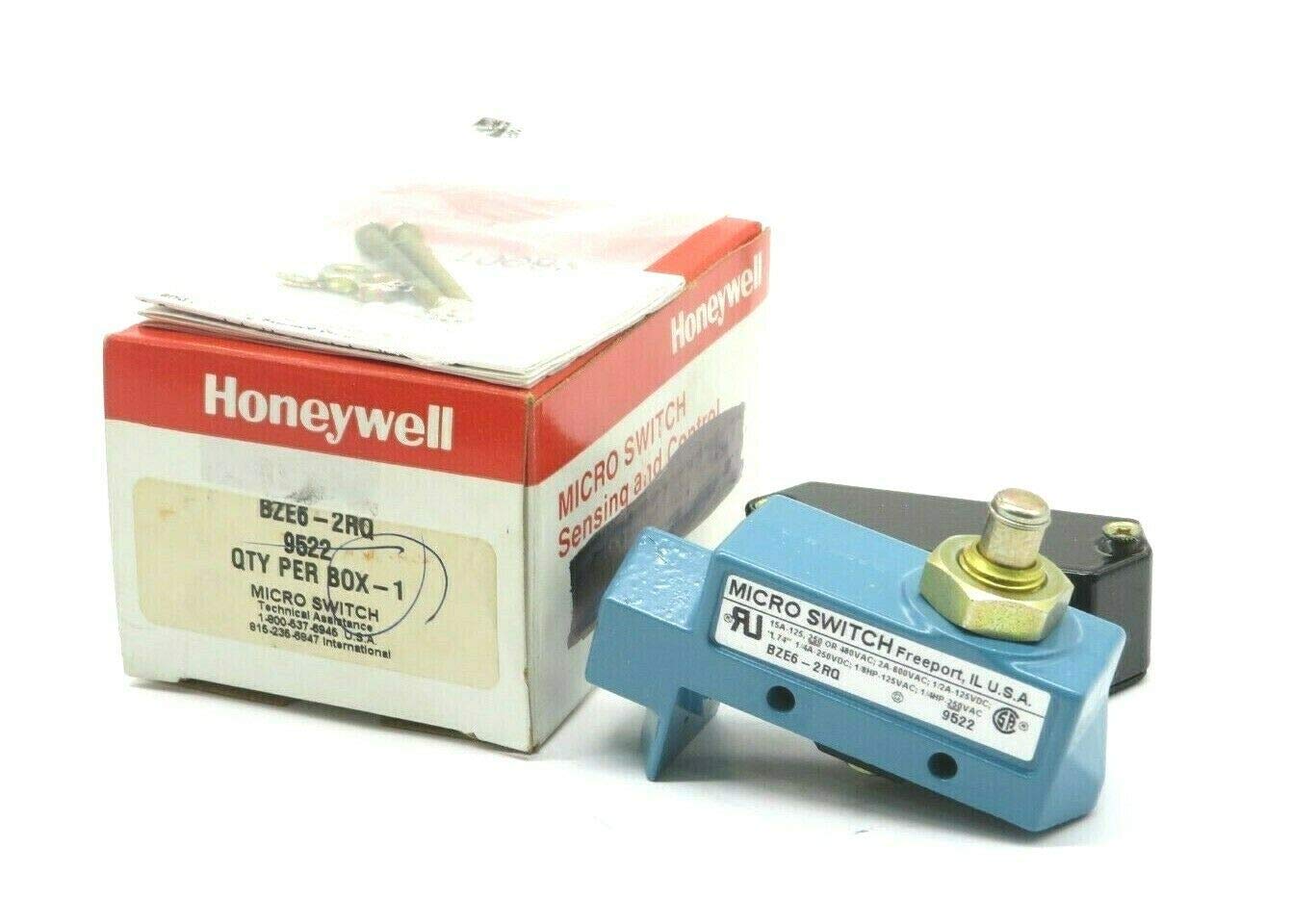

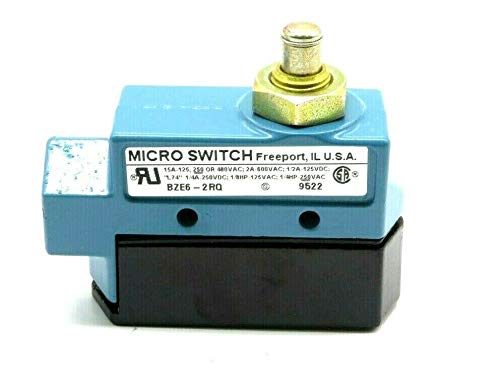

Honeywell BZE6-2RQ Enclosed Limit Switch 1NC/1NO SPDT

Product Description

The Honeywell BZE6-2RQ enclosed limit switch provides reliable and efficient control for industrial and commercial applications. With its top plunger actuator and 1NC/1NO SPDT snap action, this switch ensures consistent performance.

• Durable die-cast zinc and epoxy-coated housing
• Wide operating temperature range from -32 to 71 degrees Celsius
• Supports 600 VAC and 250 VDC, with a current rating of up to 22 amps

Product Highlights

The Honeywell BZE6-2RQ is designed for versatility and reliability. It is suitable for various industrial applications such as packaging equipment, textile machinery, and conveyors. Its compact size allows easy installation in limited spaces, making it a cost-effective solution for industry professionals.

Product Information

Standard Information

• Manufacturer: Honeywell
• Brand: Honeywell
• MPN: BZE6-2RQ

Technical Specifications

• Actuator Type: Top Plunger
• Contact Configuration: 1NO/1NC SPDT Snap Action
• Operating Voltage: 600 VAC/250 VDC
• Current Rating: 22 Amps
• Enclosure: NEMA 1/IP40
• Material: Die Cast Zinc, Epoxy Coated
• Mounting Type: Flanged
• Operating Temperature: -32 to 71 degrees Celsius
• Power Rating: 1/8 hp
• Operating Cycles: 5000000 Cycles
• Connection Type: 1/2-14 NPT Conduit
• Connectivity Protocol: X-10
• International Protection Rating: IP00
• Sub Brand: Microswitch
• Application: Packaging Equipment, Special Machinery, Textile Machinery, Conveyors, Construction Machinery and Equipment, Printing Trades Machinery, Overhead Cranes and Hoists
• Standards/Approvals: UL E12252 Listed, CSA LR41372 Certified
