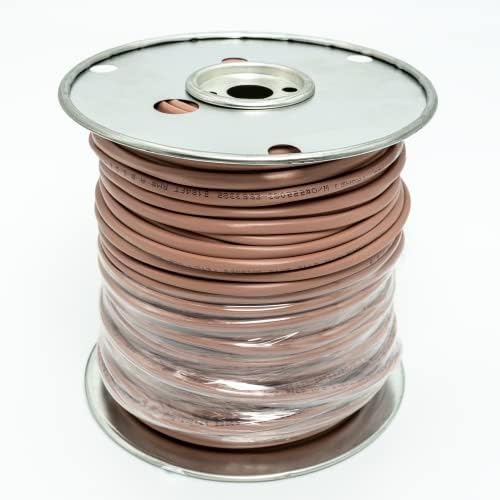

Genesis Cable-Honeywell 47180307 Thermostat Wire 18/10 Solid 250 ft Roll

Product Description

The GENESIS CABLE-HONEYWELL 47180307 is a thermostat wire designed for powering circuits and ensuring proper function of controls. This 18 AWG solid conductor wire features a PVC jacket and polypropylene insulation. It has a 300V voltage rating and is CL2 and sunlight resistant. Packaged on a 250 ft reel, it's suitable for thermostat and low voltage applications.

• Designed for the power requirements of thermostat circuits.
• Features a tubed jacket over untwisted insulated conductors.
• Solid bare copper conductors with polypropylene insulation.

Product Highlights

This thermostat cable ensures reliable power and control functionality in residential and commercial thermostat installations.

Product Information

Standard Information

• Brand: GENESIS CABLE-HONEYWELL
• Manufacturer Part Number: 47180307
• Country of Origin: USA

Technical Specifications

• Number of Conductors: 10
• Conductor Size: 18 AWG
• Length: 250 ft
• Voltage Rating: 300 V
• Conductor Material: Copper
• Outside Diameter: 0.24 in
• Insulation Thickness: 0.006 in
• Jacket Thickness: 0.015 in
• Solid/Stranded: Solid
• Resistance: 6.5 Ohm
• Capacitance: 25 pF/ft
• Impedance: 100 Ohm
• Insulation Material: Polypropylene
• Insulation Color: Assorted
• Jacket Material: PVC
• Jacket Color: Brown
• Temperature Rating: -20 to 60 deg C
• Package Type: Reel
• Number of Items: 1
• Operating Voltage: 150 Volts max.
