Product Description

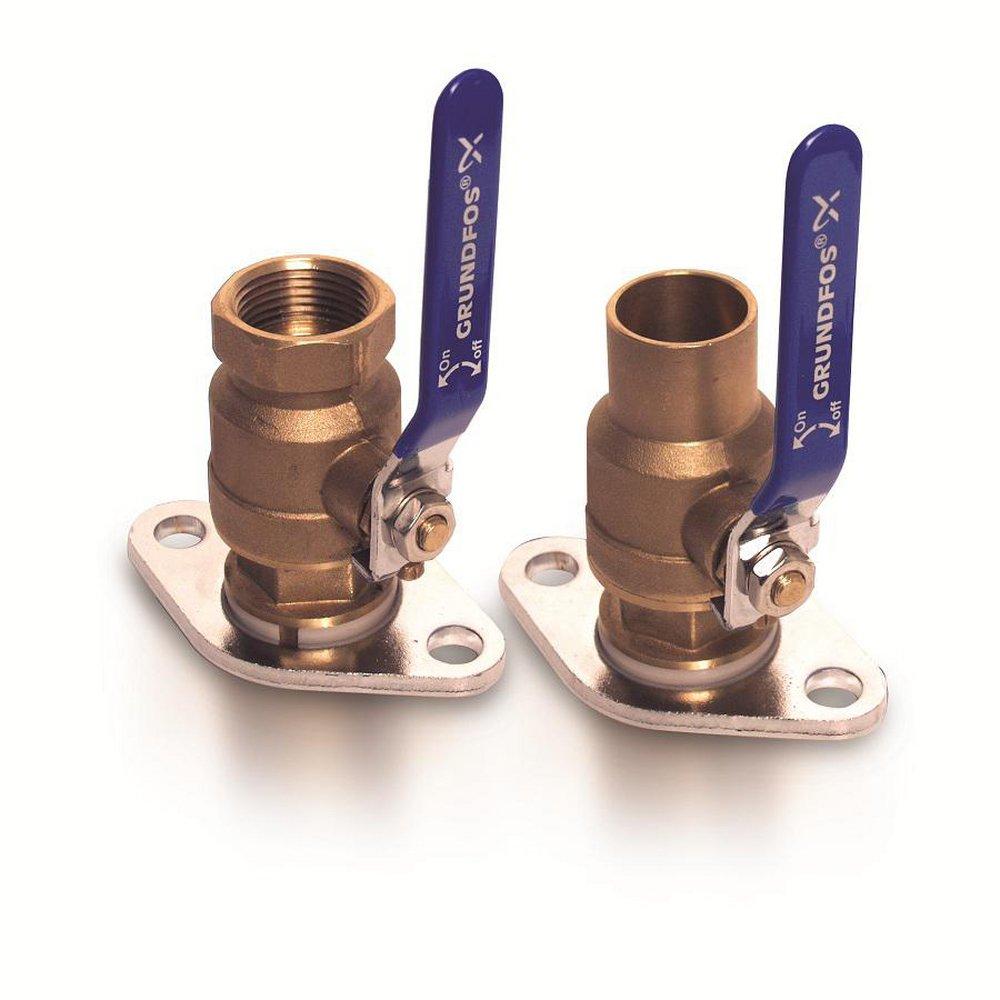

The Grundfos 96806131 isolation valve kit is designed for easy integration with Grundfos ALPHA, UP, and UPS pumps featuring the GF 15/26 flange connection. This product is crafted using robust bronze materials ensuring durability and is compliant with IAPMO standards for safe plumbing practices.
- Lead-free construction, enhancing safety and environmental standards.
- Rated for up to 150 PSI, suitable for varied plumbing setups.
- Temperature capability up to 230 degrees Fahrenheit, allowing for high-temperature operations.
Product Highlights

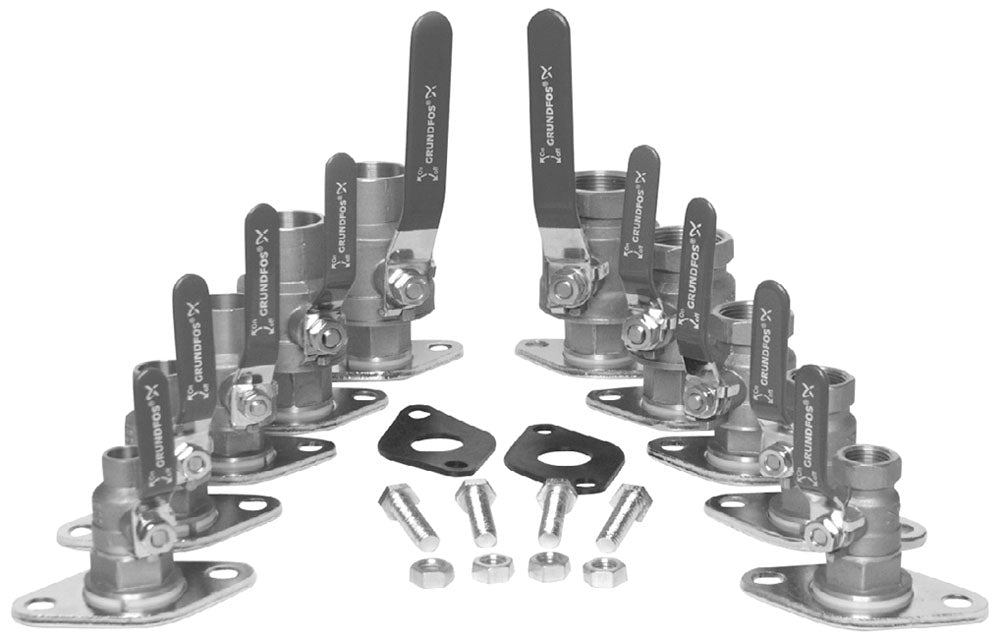

This valve set includes two rotating flanges, two lever handle ball valves, two dielectric sleeves, and all necessary gaskets and hardware for a complete installation. It supports a face-to-face size of 3.55 inches and a center of port to top measurement of 2-21/32 inches.
Product Information
Standard Information
-
Connection Type: Threaded
-
Connection Size: 1 Inch
Technical Specifications
-
Material: Bronze
-
Pressure Rating: 150 PSI
-
Temperature Rating: 230 degrees Fahrenheit
-
Inclusions: Brass valve housing, chrome plated brass ball, PTFE valve seat, composite dielectric sleeve, chrome plated steel flange/bolt/nut, EPDM gasket
