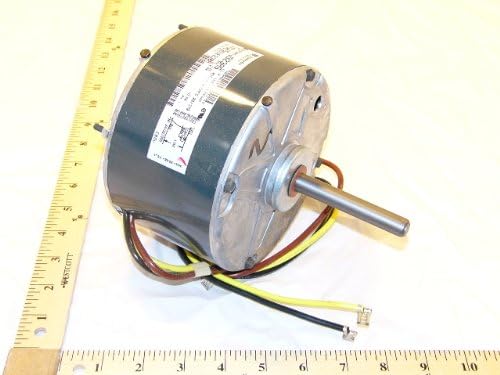

Carrier HC35VE230 Fan Motor 1/8HP 208/230V 1125RPM 1PH

Product Description

The Carrier HC35VE230 Condenser Fan Motor is designed to ensure efficient and reliable performance in HVAC systems. Ideal for maintaining indoor comfort, this motor supports air conditioners, heat pumps, rooftop units, and package units.

• Speed of 1125 RPM for optimal airflow
• Operates on 208/230 Volts for compatibility with most systems
• Durable construction guarantees long-lasting use

Product Highlights

Carrier's HC35VE230 model is essential for HVAC professionals seeking powerful and sustainable operation with straightforward installation. It operates at 1/8 horsepower, making it suitable for a variety of applications.

Product Information

Standard Information

• Power: 1/8 HP
• Voltage: 208/230V

Technical Specifications

• Speed: 1125 RPM
• Electrical Phase: Single-Phase
• Operational Style: Single-Speed
• Motor Diameter: 5.6 inches
• Shaft Size: 1/2 inch
• Rotation: Reversible
• Mounting: Stud, Band, Base, or Lug Break Away Bolts
