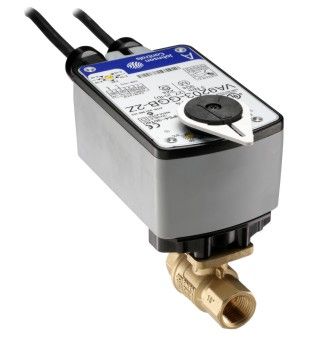

Johnson Controls VG1241CL+943BUB Model VG1241CL Two-Way Plated Brass Trim NPT End Connections Ball Valve with Model VA9203-BUB-2 Spring-Return Closed with One Switch Electric Actuator

Product Description

The Johnson Controls VG1241CL+943BUB Model VG1241CL is a two-way plated brass trim NPT end connections ball valve designed for efficient flow regulation in HVAC systems. Paired with the VA9203-BUB-2 electric actuator, this unit ensures precise control and reliability.

• Forged Brass Body with a 580 psig static pressure rating
• Spring-Return for controlled closure
• Suitable for hot or chilled water and low-pressure steam applications

Product Highlights

This ball valve is equipped with a robust brass body, providing a static pressure rating of 580 psig. It is designed for use in HVAC systems to control the flow of hot or chilled water and low-pressure steam. The spring-return electric actuator ensures reliable performance and precise control.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG1241CL+943BUB

Technical Specifications

• Flow Coefficient: 7.4 Cv
• Voltage Range: 85-264V
• Operation: 2-position, spring-return
• Static Pressure Rating: 580 psig
