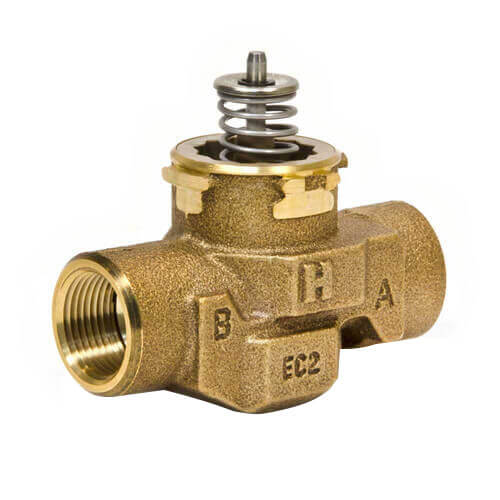

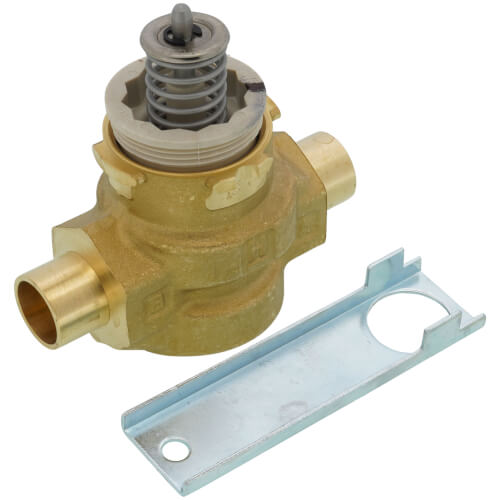

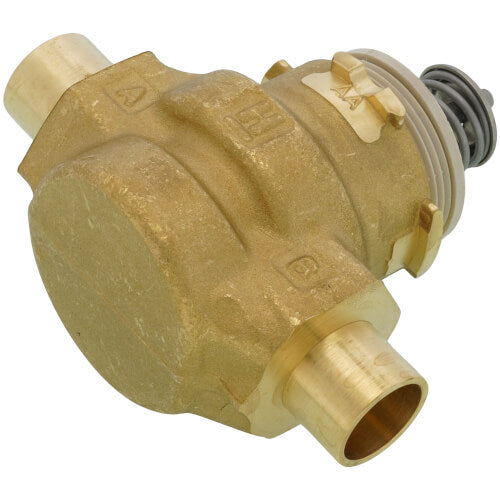

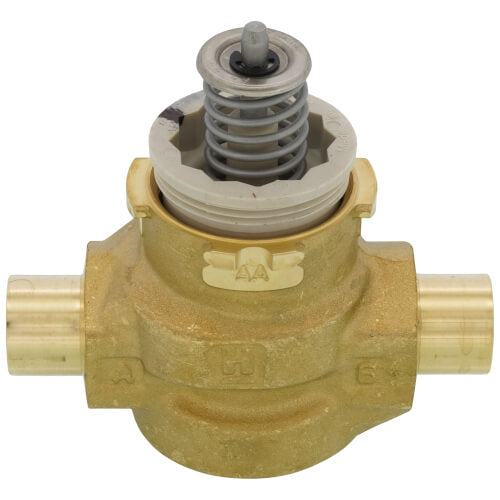

Resideo VCZAA1100 1/2 Inch Sweat VC Valve Assembly 3.5 Cv

Product Description

The Resideo VCZAA1100 1/2 inch Sweat VC Valve Assembly is designed for hydronic applications to control the flow of hot water or chilled water glycol solution up to 60% concentration. This valve is perfect for zone control of heating and cooling systems, or in individual fan coil, baseboard radiator, or convector applications. It can be controlled by SPST or SPDT controllers, tristate, or modulating proportional controllers, depending on the model selected.

• Two-way Cartridge Cage Valve
• Bi-directional installation
• 1/2 inch Sweat Connection

Product Highlights

Quick open, linear, and equal percentage flow characteristics. Installation requires no tools, and actuator removal does not require draining the system. Service is done by replacing the cartridge, ensuring a factory-new condition.

Product Information

Standard Information

• Manufacturer: Resideo
• Brand: Honeywell Home
• Product Type: 2-Way VC Valve Assembly

Technical Specifications

• Size: 1/2 inch
• Flow Capacity (Cv): 3.5
• Max Pressure: 300 psi
• Temperature Range: 34 to 203 degrees Fahrenheit
• Controlled Fluid: Chilled or hot water with up to 60% Glycol
• Connection Type: Sweat
• Stem Travel: 0.4 inches
• Body Pattern: Straight-Through, 2-Way
