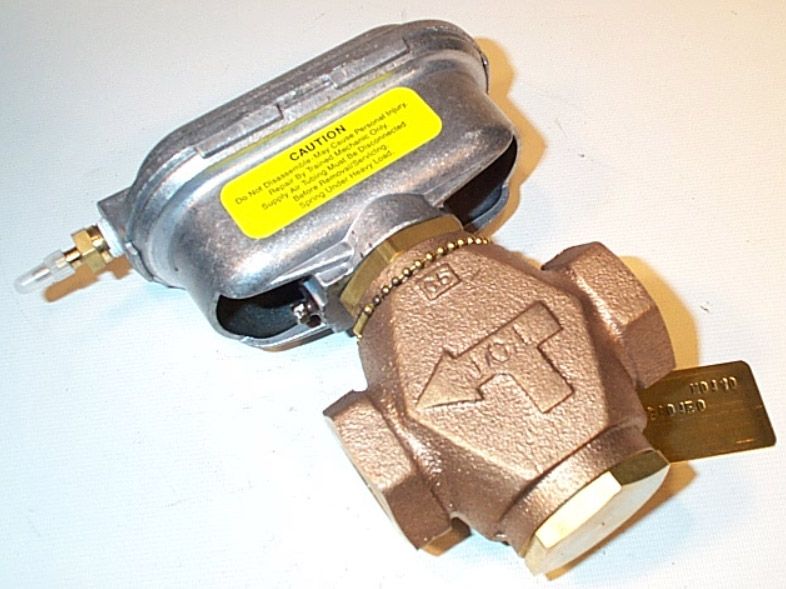

Johnson Controls VG7441CS+3801D Brass Trim Globe Valve with Compact Pneumatic Actuator

Product Description

The Johnson Controls VG7441CS+3801D is a high-quality pneumatic valve designed for efficient control of HVAC systems. This valve features a robust bronze body with a 1/2 inch NPT connection, suitable for handling either hot or chilled water as well as low-pressure steam applications.

• Stainless steel valve stem ensures durability and corrosion resistance.
• Designed for tight installations, ideal for baseboards and convectors.
• Operates effectively within a 4-8 psi spring range, supporting a max flow of 0.73 CV.

Product Highlights

Equipped with a compact V-3801-8001 pneumatic actuator, this valve set provides reliable performance and responsive control. It is optimized for systems requiring precise flow management under variable pressures.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7441CS+3801D

Technical Specifications

• Valve Size: 1/2 inch
• Valve Connection: NPT
• Body Material: Bronze
• Valve Application: Steam, Water
• Max Pressure: 15 psi WSP, 125 psi WOG
• Weight: 2.80 lbs
