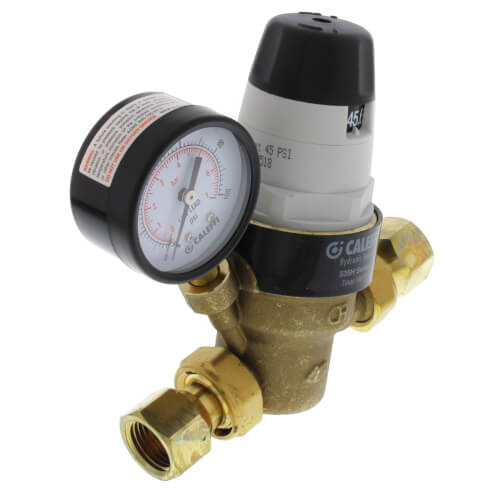

Caleffi 535341HA 535H Series Reducing Valve ASSE 1003, Female 1/2 NPT with Pressure Gauge

Product Description

The Caleffi 535341HA 535H Series Reducing Valve is designed for both residential and commercial applications. It features a 1/2 inch female NPT connection and comes with a pressure gauge.

• Pre-adjustable pressure reducing valve
• Low lead dezincification resistant Ecobrass body
• Unique noise reducing pressure balanced cartridge

Product Highlights

This valve reduces and stabilizes water pressure, which can often be too high and variable for domestic systems. It includes a dial indicator with direct readout, an integral stainless steel filter, and a high flow seat design. Suitable for water systems with sediment and debris.

Product Information

Standard Information

• Brand: Caleffi
• Model: 535341HA
• Valve Type: Pressure Reducing Valve

Technical Specifications

• Flow Rate: 7.3 gpm
• Max Working Pressure: 300 psi
• Temperature Rating: 180 deg F
• Connection Type: FNPT
• Body Material: Forged Brass
• Trim Material: Stainless Steel
• Inlet to Outlet Length: 5-3/4 inches
• Top to Inlet Center: 4-1/2 inches
