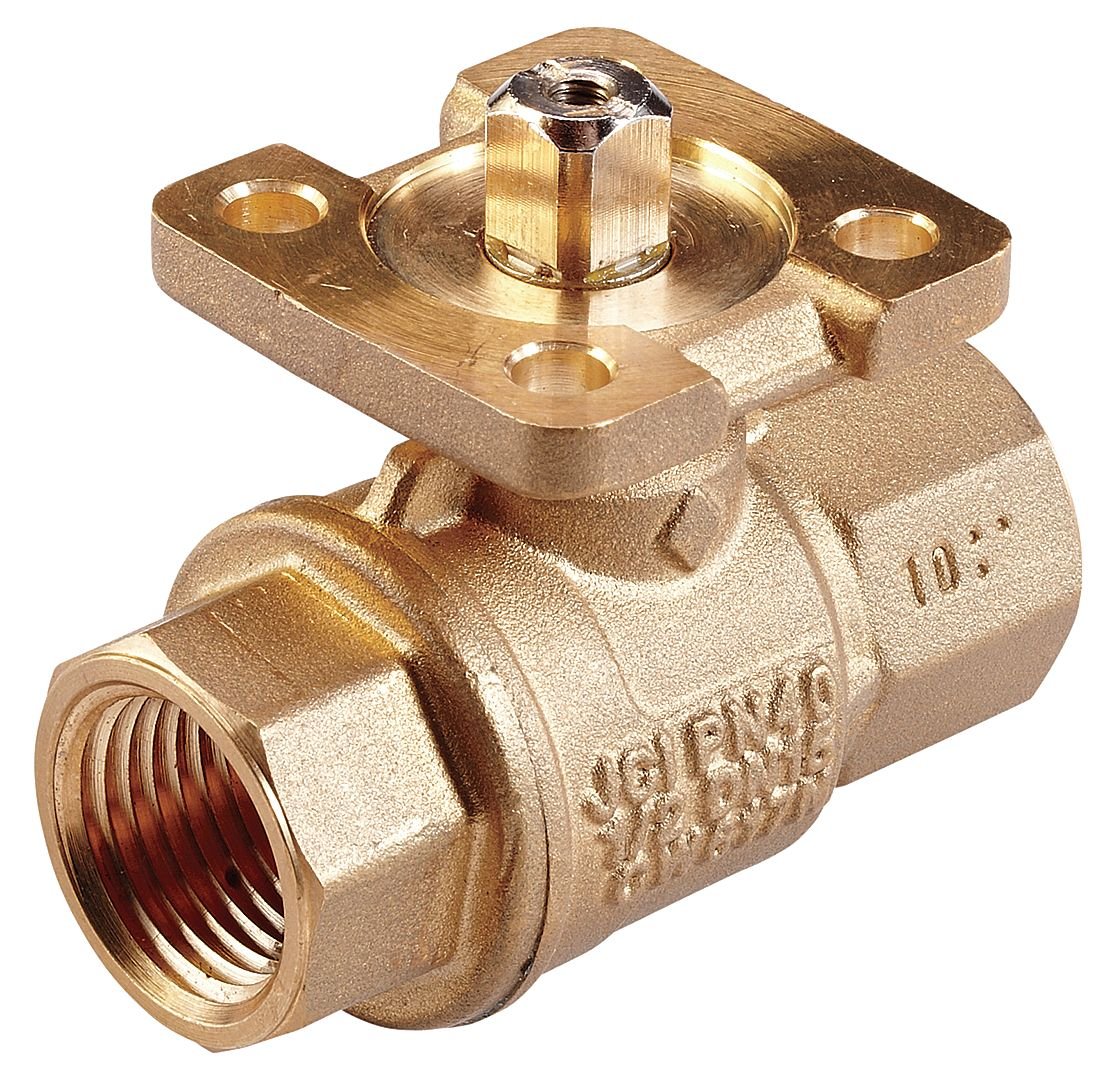

Johnson Controls VG1245AL+943BUB Two-Way Stainless Steel Trim Ball Valve With Electric Actuator

Product Description

The Johnson Controls VG1245AL+943BUB is a robust two-way stainless steel trim ball valve designed to manage the flow of hot or cold water and in some instances, low-pressure steam. This valve is suited for HVAC applications, ensuring precise control according to the controller's demand.

• Integrated with VA9203-BUB-2 closed spring-return electric actuator for reliable operation.
• Supports on/off, floating, or proportional control ensuring versatility in various applications.
• Constructed with a forged brass body enhancing durability with a 580 psig static pressure rating.

Product Highlights

This ball valve series is compatible with Johnson Controls M9100, VA9104, M9106, and M9109 series actuators, providing extensive usage flexibility.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG1245AL+943BUB

Technical Specifications

• Material: Stainless Steel, Forged Brass
• Valve Type: Two-Way Ball Valve
• Connection: NPT End
• Control Type: On/Off, Floating, Proportional
• Actuator Model: VA9203-BUB-2
