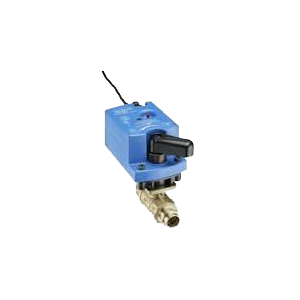

Johnson Controls VG1245AL+9T4IGA Two-Way Stainless Steel Trim NPT Ball Valve Without Switch

Product Description

The Johnson Controls VG1245AL+9T4IGA Two-Way Stainless Steel Trim NPT Ball Valve is designed to regulate the flow of hot or chilled water in HVAC systems. This valve can also manage low-pressure steam in response to HVAC controllers.

• Forged Brass Body providing 580 psig static pressure rating
• Available in sizes 1/2 inch through 2 inches
• Factory or field mountable to various Johnson Controls electric actuators

Product Highlights

This valve is a versatile and reliable option for HVAC flow regulation. Its forged brass body ensures durability and high-pressure tolerance, making it suitable for multiple applications.

Product Information

Standard Information

• Manufacturer: Johnson Controls
• MPN: VG1245AL+9T4IGA

Technical Specifications

• Valve Type: Two-Way
• Body Material: Forged Brass
• Size: Available in 1/2 inch through 2 inches
• Pressure Rating: 580 psig static pressure
• Electrical Actuator Compatibility: VA9104, M9106, M9109, M9100 Series
• Applications: Hot or chilled water, low-pressure steam
• Control: On/off, floating, proportional
