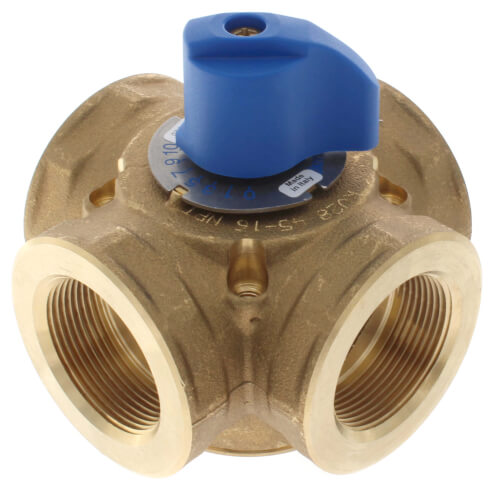

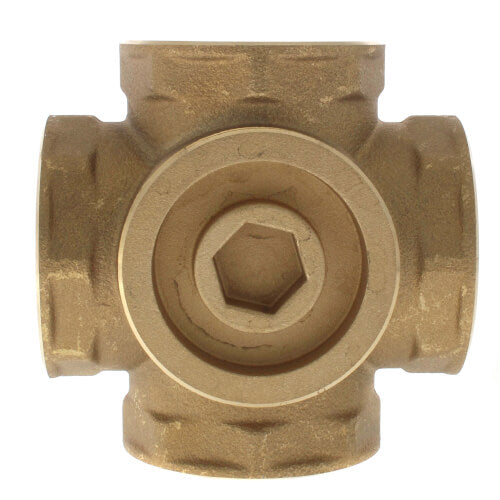

Tekmar Controls 723 1-1/2 Brass 4-Way Mixing Valve

Product Description

Tekmar Controls 723 is a 1-1/2 inch brass 4-way mixing valve. This valve is used to mix supply water from a heat source with water returning from a heating system. It is applicable in both closed loop and open loop hydronic systems. The valve comes with standard female NPT threads for easy installation. It allows a maximum leak-through rate of 1% to accommodate water expansion during temperature fluctuations.

• Designed for closed and open loop hydronic systems.
• Can be manually adjusted or operated using an actuating motor.
• Constructed from durable brass for long-lasting performance.

Product Highlights

This mixing valve ensures efficient temperature management in hydronic systems.

Product Information

Standard Information

• Brand: Tekmar Controls
• MPN: 723

Technical Specifications

• Size: 1-1/2 inches
• Body Pattern: 4-Way
• Material: Brass
• Connection Type: FNPT x FNPT
• Maximum Operating Pressure: 146 PSI
• Operating Temperature Range: 20°F to 248°F
• Weight: 7.15 lbs
• Acceptable Fluid Media: Chilled and hot water with antifreeze and anticorrosive compounds
