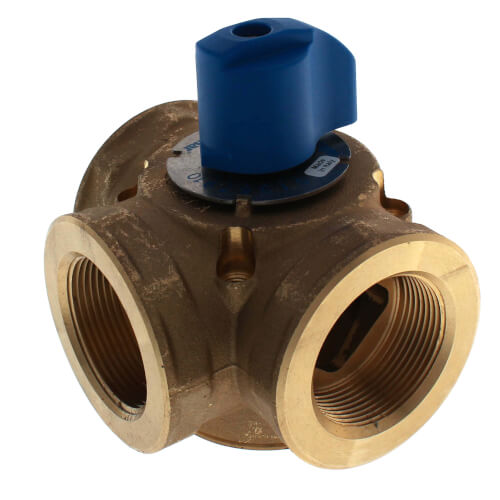

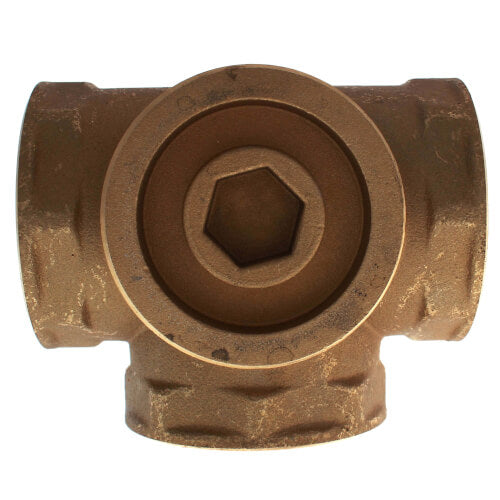

Tekmar 713 1-1/2 Brass 3-Way Mixing Valve

Product Description

The Tekmar Controls 713 is a 1-1/2 inch brass 3-way mixing valve designed for hydronic heating systems. This valve is used to blend supply water from a heat source with water that returns from a system. It functions well in both closed loop and open loop systems.

• Standard female NPT threads
• Maximum leak through rate of 1%
• Compatible with chilled and hot water

Product Highlights

The Tekmar 713 mixing valve allows for manual setting of valve position using the handle. For automatic control, an Actuating Motor 741 can be integrated. It is suitable for use with various fluid types including glycol and antifreeze at a maximum concentration of 60%.

Product Information

Standard Information

• Brand: Tekmar Controls
• MPN: 713

Technical Specifications

• Body Material: Brass
• Size: 1-1/2 inches
• Max Operating Pressure: 146 PSI
• Temperature Range: -20 to 248°F
• Connection Type: FNPT x FNPT
• Weight: 6.7 lbs
• Shipping Dimensions: 4.1875 x 4.375 x 2.1875 inches
