Choosing the Right Line Set for Your Mini Split

Installing a mini split system is an efficient way to heat and cool your space, but choosing the right components is critical to ensure long-term performance. One of the most important parts of this system is the line set, which carries refrigerant between the indoor and outdoor units. If the wrong size or type is used, it can affect the system’s efficiency and even lead to damage.

This guide will walk you through everything you need to know about choosing the best line set for your mini split.

What Is a Mini Split Line Set?

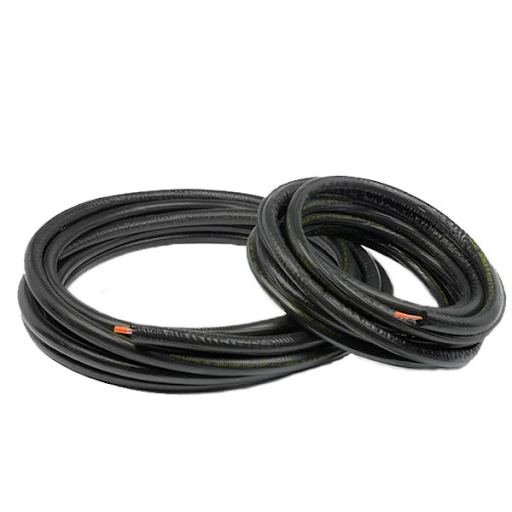

A mini split line set is a pair of copper pipes that connect the indoor air handler to the outdoor condenser. These pipes carry refrigerant to complete the cooling and heating cycles. The line set typically includes two tubes: a suction line, which is larger and carries vapor refrigerant, and a liquid line, which is smaller and carries liquid refrigerant.

Line sets also often come with insulation on one or both lines to reduce energy loss and condensation.

Why Choosing the Right Line Set Matters

Selecting the correct line set for your mini split system is essential for several reasons:

• Performance: A properly sized line set ensures optimal refrigerant flow, which affects how well the system heats and cools.


• Energy Efficiency: Incorrect sizing can lead to increased energy usage and higher utility bills.


• System Longevity: The right line set prevents strain on the compressor and avoids issues such as refrigerant leaks.


• Warranty Compliance: Using improper components can void the manufacturer’s warranty.


Factors to Consider When Choosing a Line Set

Pipe Diameter

One of the first things to consider is the pipe size. The right diameter depends on the mini split model and its cooling or heating capacity. Most residential systems require line sets with a suction line diameter between ⅜ inch and ¾ inch, and a liquid line diameter between ¼ inch and ⅜ inch.

Always refer to the manufacturer’s specifications to determine the correct pipe size for your unit.

Line Set Length

Length is another crucial factor. Line sets are typically available in pre-cut lengths ranging from 15 to 50 feet. It is too short, and you will not be able to reach between units. Too long and you risk inefficiencies or refrigerant charge issues.

Some systems allow flexibility, but exceeding the manufacturer’s recommended maximum length can require adjustments to the refrigerant charge. Keep the line set length as close to the recommendation as possible.

Insulation Quality

The suction line should always be insulated to prevent condensation and maintain cooling performance. Some premium line sets also insulate the liquid line. High-quality insulation helps reduce energy loss and prevents moisture-related problems such as mold or corrosion.

Look for insulation that meets industry standards, such as UL-listed or ASTM-rated products. This ensures durability and fire resistance.

Material and Construction

Line sets are made from copper, but the quality can vary. Look for seamless, soft-drawn copper tubing that is cleaned and sealed at the factory to prevent contamination. Kink-resistant designs and UV-resistant insulation are features that add to long-term reliability.

Compatibility With Refrigerant Type

Mini split systems use different types of refrigerant, most commonly R-410A or R-32. The line set must be compatible with the refrigerant in your specific system. Using the wrong line set can cause chemical reactions or damage to the system components.

Always verify refrigerant compatibility when purchasing a new line set.

Pre-Flared Ends vs Unflared Ends

Some line sets come with pre-flared ends, which can simplify installation. These flared connections are designed to match standard mini split fittings and often include caps to keep the inside clean.

Unflared ends give more flexibility if custom lengths or field modifications are needed, but they require the right tools and skill to install properly.

Additional Accessories to Consider

In many installations, you may need extra items to ensure a clean and efficient setup.

• Line Set Covers: These hide and protect the pipes from weather and physical damage.


• Drain Hose: This is used to handle condensate water from the indoor unit.


• Communication Wire: To connect the indoor and outdoor components electrically.


Many line set kits bundle these accessories to simplify the installation process.

Professional vs DIY Installation

If you are comfortable with HVAC installation and have the required tools, installing a line set yourself can be a cost-saving project. However, mini split systems are sensitive to pressure and refrigerant levels, and an improper setup can lead to performance issues or damage.

For most homeowners, hiring a licensed HVAC professional is the safest and most reliable choice.

Tips for a Successful Installation

• Measure the exact distance between indoor and outdoor units before purchasing.


• Check the manufacturer’s specifications for line size and maximum length.


• Use a level and secure clamps to ensure a clean and safe installation path.


• Avoid sharp bends that could kink the copper tubing.


• Seal all entry points to prevent pests and weather exposure.
