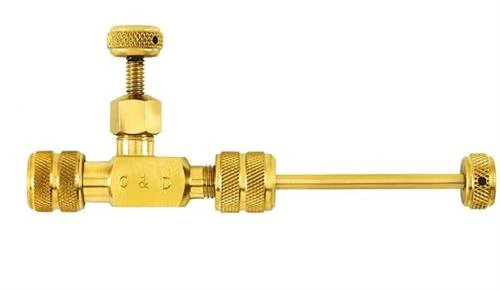

The Importance of an AC Valve Core Removal Tool & How to Use It

When it comes to maintaining and repairing HVAC systems, the smallest components often play a crucial role in overall performance. One such component is the AC valve core. Though tiny, it can significantly affect the efficiency of your air conditioning system.

Using the right tools can make all the difference. In particular, an AC valve core removal tool helps HVAC professionals and DIYers alike save time, prevent system leaks, and ensure accurate pressure readings.

Let’s explore what this tool does, why it’s important, and how to use it properly.

What is an AC Valve Core?

The AC valve core is a small, spring-loaded valve located inside the Schrader valve of an air conditioning system. It serves as a seal to control the release of refrigerant, much like the valve core in a tire maintains air pressure.

Valve cores are found in both high and low-pressure service ports of AC systems and are essential for:

• Keeping refrigerant sealed within the system

• Allowing refrigerant to flow when needed during charging or recovery

• Supporting accurate system diagnostics


Because they are frequently accessed and can wear out over time, valve cores may need to be replaced or serviced. This is where the AC valve core removal tool becomes essential.

Why the AC Valve Core Removal Tool Matters

Prevents Refrigerant Leaks

Without the right removal tool, removing a valve core can cause refrigerant to escape. This not only wastes expensive refrigerant but can also lead to regulatory compliance issues. An AC valve core removal tool is designed to isolate the valve port during removal, minimizing loss and avoiding unnecessary emissions.

Enables Repairs Under Pressure

One of the standout benefits of using a core removal tool is that it allows technicians to replace valve cores even when the system is under pressure. That means you can perform quick repairs or replacements without needing to evacuate the system entirely. This saves time, labor, and refrigerant.

Increases Efficiency and Safety

Working with HVAC systems always comes with some level of risk. The valve core removal tool helps improve safety by giving you better control during the removal process. Additionally, it reduces downtime and allows for faster, more efficient servicing of air conditioning units.

Types of Valve Core Removal Tools

There are several types of tools available, each suited for different tasks or preferences:

Manual Valve Core Removal Tools

These are basic handheld tools ideal for quick core replacements when the system is not pressurized. They are simple, affordable, and good for occasional use.

Valve Core Removal Tools with Ball Valves

These tools include a built-in shut-off mechanism, allowing you to remove and replace cores without releasing refrigerant. They are commonly used by professionals for systems under pressure.

Valve Core Removal Tools with Storage

Some tools offer built-in storage chambers to temporarily hold the valve core and refrigerant. These are more advanced and help ensure zero loss of refrigerant during the removal process.

How to Use an AC Valve Core Removal Tool

Step 1: Identify the Valve Port

Locate the service valve on the AC system, usually found on the suction or discharge lines. Remove the cap and inspect the valve core inside.

Step 2: Connect the Tool

Attach the core removal tool to the service port. If you're using a tool with a ball valve or shut-off, ensure it's closed before proceeding.

Step 3: Engage the Core Gripper

Slide the internal gripper or extractor rod down to engage with the valve core. Twist the handle clockwise to lock onto the core.

Step 4: Remove the Core

Carefully turn the tool counterclockwise to unscrew and remove the core. If your tool is pressurized and sealed, refrigerant should remain safely inside the system.

Step 5: Inspect or Replace

Examine the removed valve core for wear, dirt, or damage. Replace it with a new one if needed, reversing the steps to install it.

Step 6: Close and Disconnect

Once the new core is installed, retract the tool and close the valve (if applicable). Disconnect the tool from the port and replace the cap securely.

Maintenance Tips for Longevity

To get the most out of your valve core removal tool, follow these maintenance tips:

• Clean the tool after each use to remove oil and debris

• Check for worn seals or O-rings and replace as needed

• Store in a dry place to prevent rust or corrosion

• Lubricate moving parts periodically to ensure smooth operation

Conclusion

A valve core may be small, but the right tool to manage it is essential for any HVAC technician or enthusiast. Whether you're performing routine maintenance or an emergency repair, an AC valve core removal tool can save time, reduce refrigerant loss, and enhance safety during the process.

If you’re looking for high-quality tools to add to your HVAC toolkit, check out Voomi Supply’s collection of valve core tools. Their range includes reliable, professional-grade options that can make servicing AC systems easier and more efficient.
