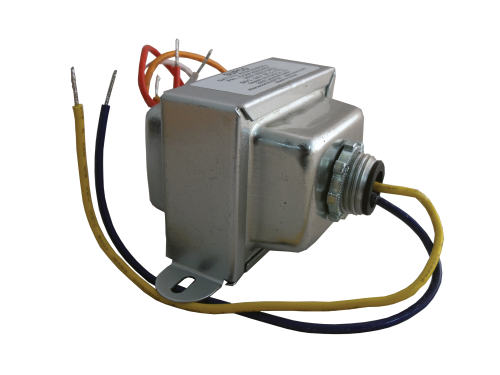

Supco sxt113 Control Transformer 40VA 24V Multi-mount

Product Description

The SUPCO sxt113 is a 40VA control transformer engineered for HVAC and refrigeration control circuit applications. It steps down primary voltage from 208VAC or 240VAC to a 24VAC secondary output, supplying the low-voltage power required to drive thermostats, contactors, relays, and other control-circuit components. The multi-mount design allows flexible installation in a variety of equipment configurations. Licensed HVAC technicians and refrigeration mechanics install this transformer as part of routine service, system upgrades, or direct replacement of failed units.

This transformer is suited for residential and light commercial HVAC and refrigeration systems that operate on 208V or 240V primary circuits and require a 24V secondary control circuit. Typical applications include split-system air conditioners, heat pumps, gas furnaces, and packaged rooftop units where low-voltage control wiring must be powered reliably. The 40VA output rating provides adequate capacity for standard control loads found in these systems.

Key Features

• 40VA output rating supports standard HVAC control circuit loads
• Dual primary voltage input accepts 208VAC or 240VAC
• 24VAC secondary output for low-voltage control wiring
• Multi-mount design accommodates varied installation orientations and enclosures
• No built-in breaker or fuse — external overcurrent protection should be provided per applicable codes

Compatibility

Designed as an OEM-style replacement control transformer for HVAC and refrigeration systems requiring a 208VAC or 240VAC primary input and a 24VAC secondary control circuit output.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified electrician. De-energize the equipment at the disconnect or breaker before removing or installing the transformer. Verify primary voltage supply matches the transformer input rating before restoring power. External overcurrent protection for the secondary circuit should be installed in accordance with NEC requirements and local codes where applicable.

Technical Specifications

• Primary Voltage: 208VAC / 240VAC
• Secondary Voltage: 24VAC
• Output Rating: 40VA
• Mount Type: Multi
• Breaker / Fuse: None

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: sxt113
