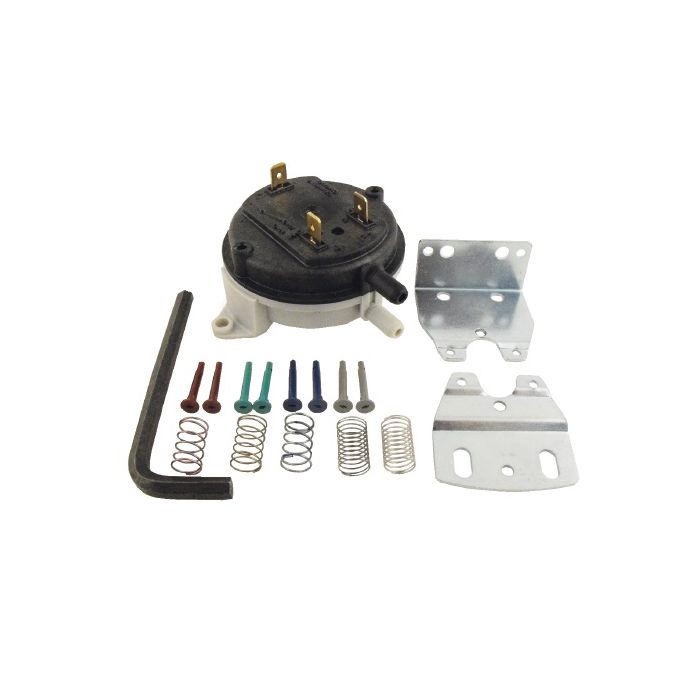

SUPCO SUP-NS2000031 Universal Air Pressure Switch

Product Description

The SUPCO SUP-NS2000031 is a universal air pressure switch designed for various applications. It can sense positive, negative, or differential pressures, making it versatile in its use. The switch features an adjustable set point range, allowing for customization depending on the specific application. This small footprint model is suitable for replacement of many existing air switches.

• Senses positive, negative, or differential pressures.
• Includes a hardware kit for installation.
• Adjustable set point range of 0.10 to 10.0 W.C.

Product Highlights

This air pressure switch is ideal for both residential and light commercial settings.

Product Information

Standard Information

• Manufacturer: SUPCO
• Country of Origin: BRA

Technical Specifications

• MPN: SUP-NS2000031
• Operating Range: 0.10 W.C to 10.0 W.C
• Max Pressure Rating: 14 W.C
• Operating Temperature: -40°F to 190°F (-40°C to 88°C)
• Product Life: 100,000 cycles
• Approvals: UL, CUL, CSA, CE, Australian Gas Association
• Voltage: 24/120 VAC
• Phase: Single
• Height: 1.5 inches
• Length: 3.25 inches
• Width: 4.5 inches
• Application: Residential, Light Commercial
• Product Type: Air Pressure Switch
• Temperature Range: -40 to 190 Deg F (-40 to 88 Deg C)
• UL Listed: Yes
• AMP: 5
• Depth: 1 inch
