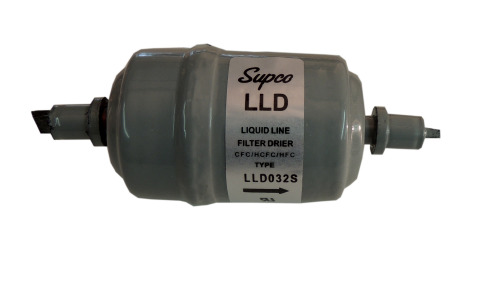

SUPCO SUP-LLD032S Liquid Line Filter Drier

Product Description

The SUPCO SUP-LLD032S is a liquid line filter drier suitable for various refrigerants, including R290. It has a three cubic inch capacity and a one-quarter inch ODF connection. The filter drier uses a blend of activated alumina and molecular sieve to effectively remove moisture and features a filtration level of forty microns.

• Compatible with CFC, HCFC, and HFC refrigerants
• Constructed with shock-resistant steel
• Includes solid copper fittings for durability

Product Highlights

This filter drier is designed to maintain system efficiency and protect components from moisture-related failures.

Product Information

Standard Information

• Desiccant Blend: Activated alumina with molecular sieve
• Filtration: 40 microns

Technical Specifications

• Maximum Working Pressure: Sizes 03-16 600 psig / 30-75 cubic inch 500 psig
• Connection Size: 1/4 inch
• Connection Type: ODF
• Dimensions (End to End): 3 3/8 inches
• Dimensions (Top to Bottom): 1 5/8 inches
• Tonnage: 1/4 to 1 Ton
