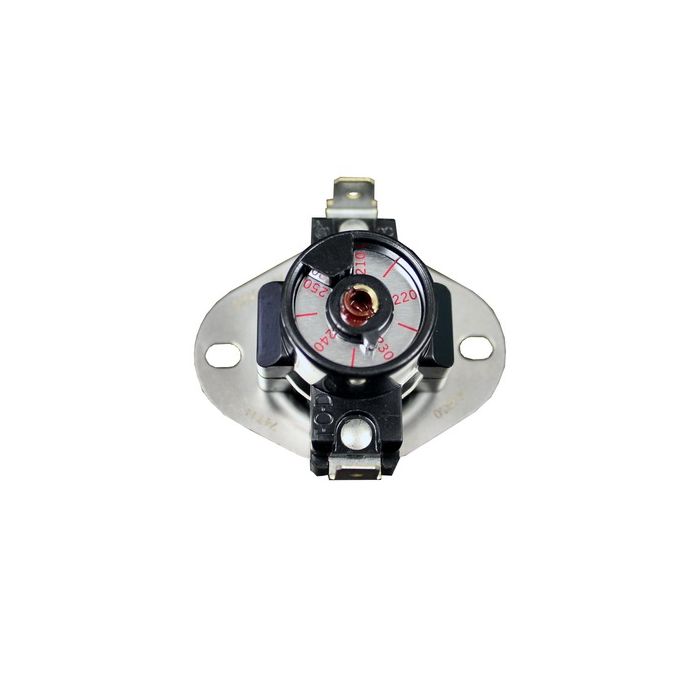

SUPCO SUP-AT014 Thermostat 74T11 Style

Product Description

The SUPCO AT014 thermostat is ideal for adjustable fan or limit applications. This model features a bimetal disc design that measures three-fourths of an inch. The snap-action mechanism enhances the temperature sensing capabilities, ensuring reliable performance. This thermostat meets the needs of heater and dryer systems, covering a wide range of requirements.

• Adjustable differential of forty degrees.
• Contacts open when the temperature rises.
• Recognized by UL and approved by CSA.

Product Highlights

Designed for versatile operation, the SUPCO AT014 is suitable for a variety of applications.

Product Information

Standard Information

• Brand: SUPCO
• MPN: AT014

Technical Specifications

• Adjustable Range: 210 degrees to 250 degrees
• Differential: 40 degrees
• Voltage: 120V/240V
• Resistive Amps @ 120/240V: 25A
• FLA @ 120V/240V: 14A/10A
• LRA @ 120V/240V: 72A/60A
• Amps: 25
• Cycle/Hertz: 60 Hz
• Operating Temperature Range: 210 degrees Fahrenheit to 250 degrees Fahrenheit
• Phase: Single
• Prop 65: Yes
• Switch Action: Open on Rise
• Approvals: UL Recognized
