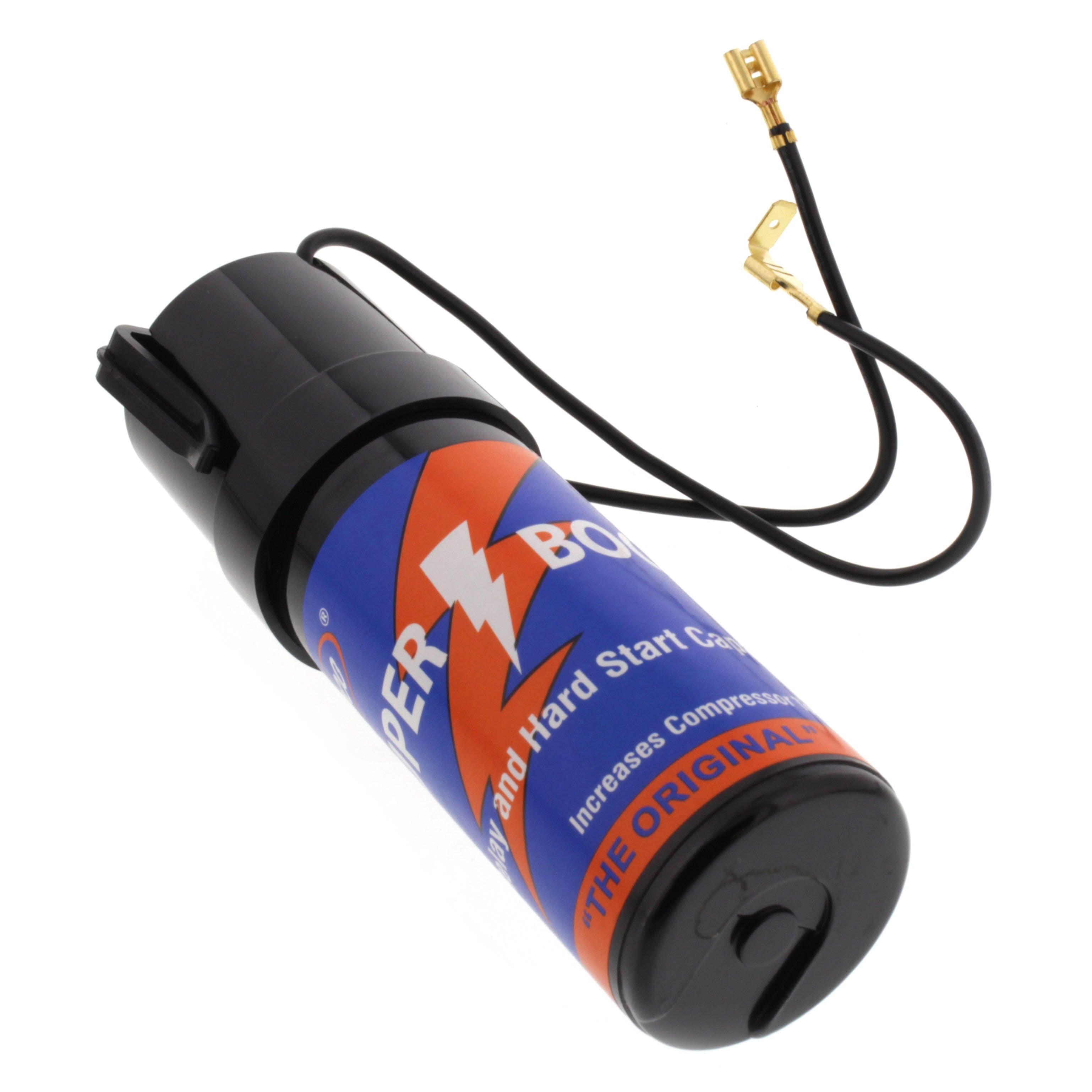

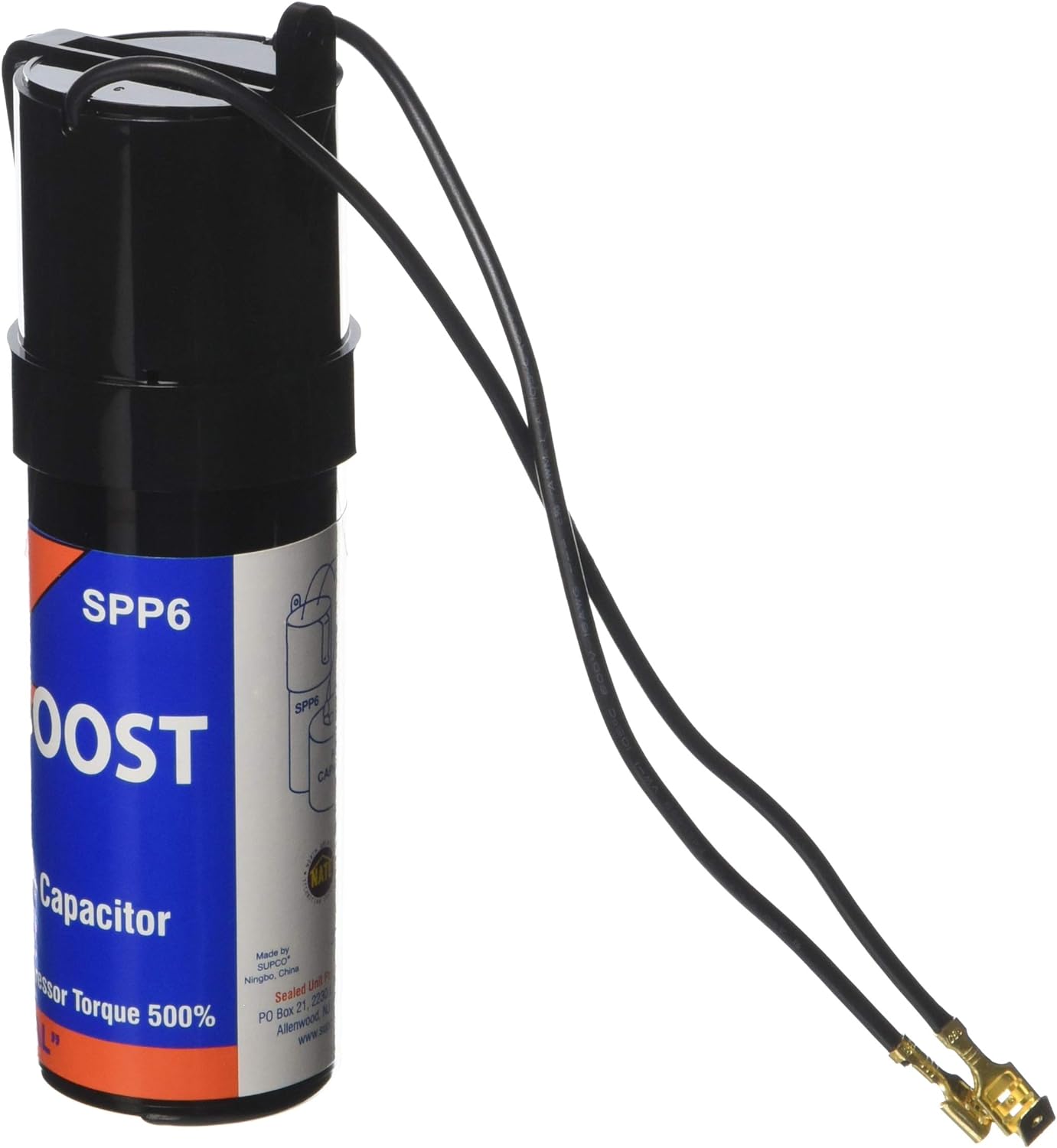

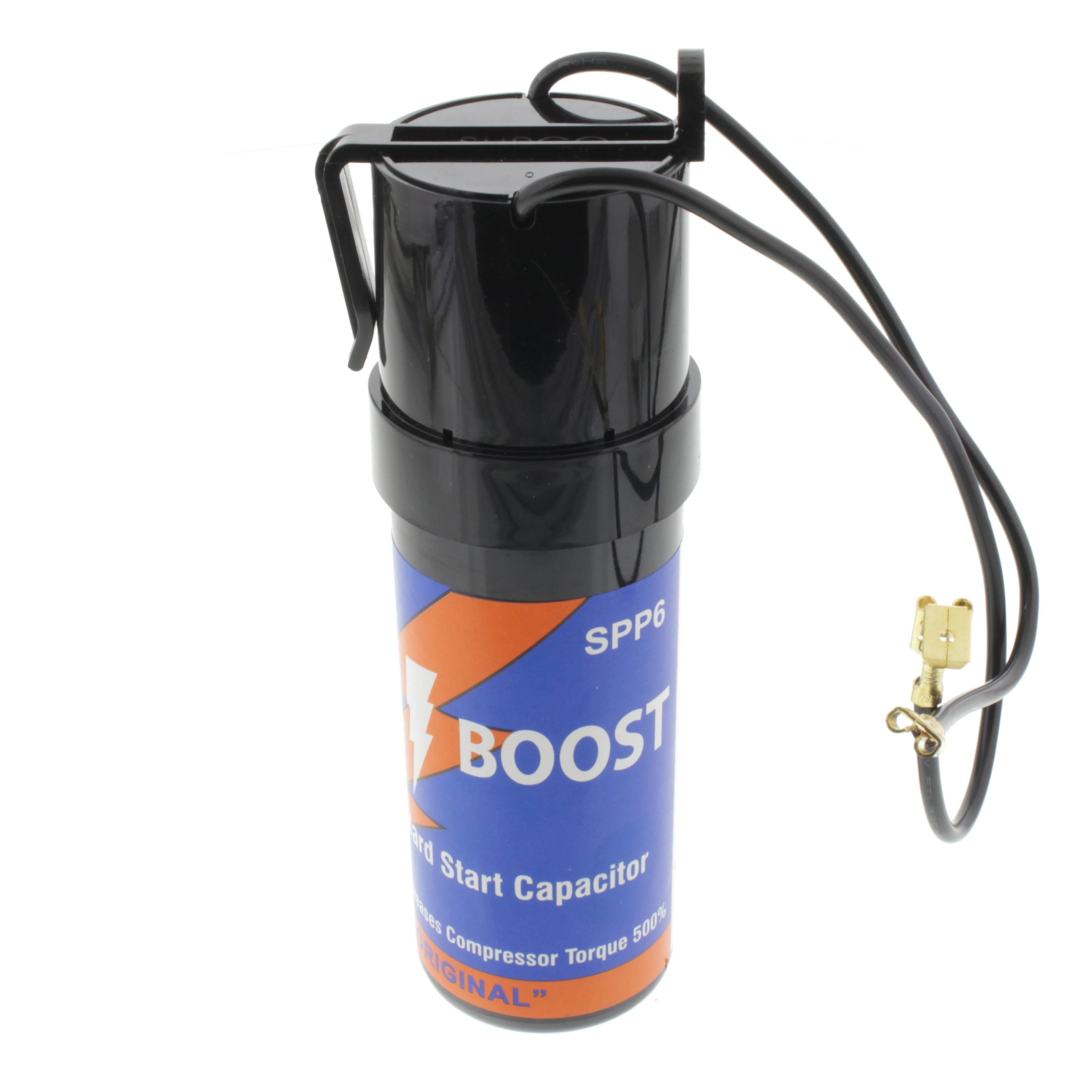

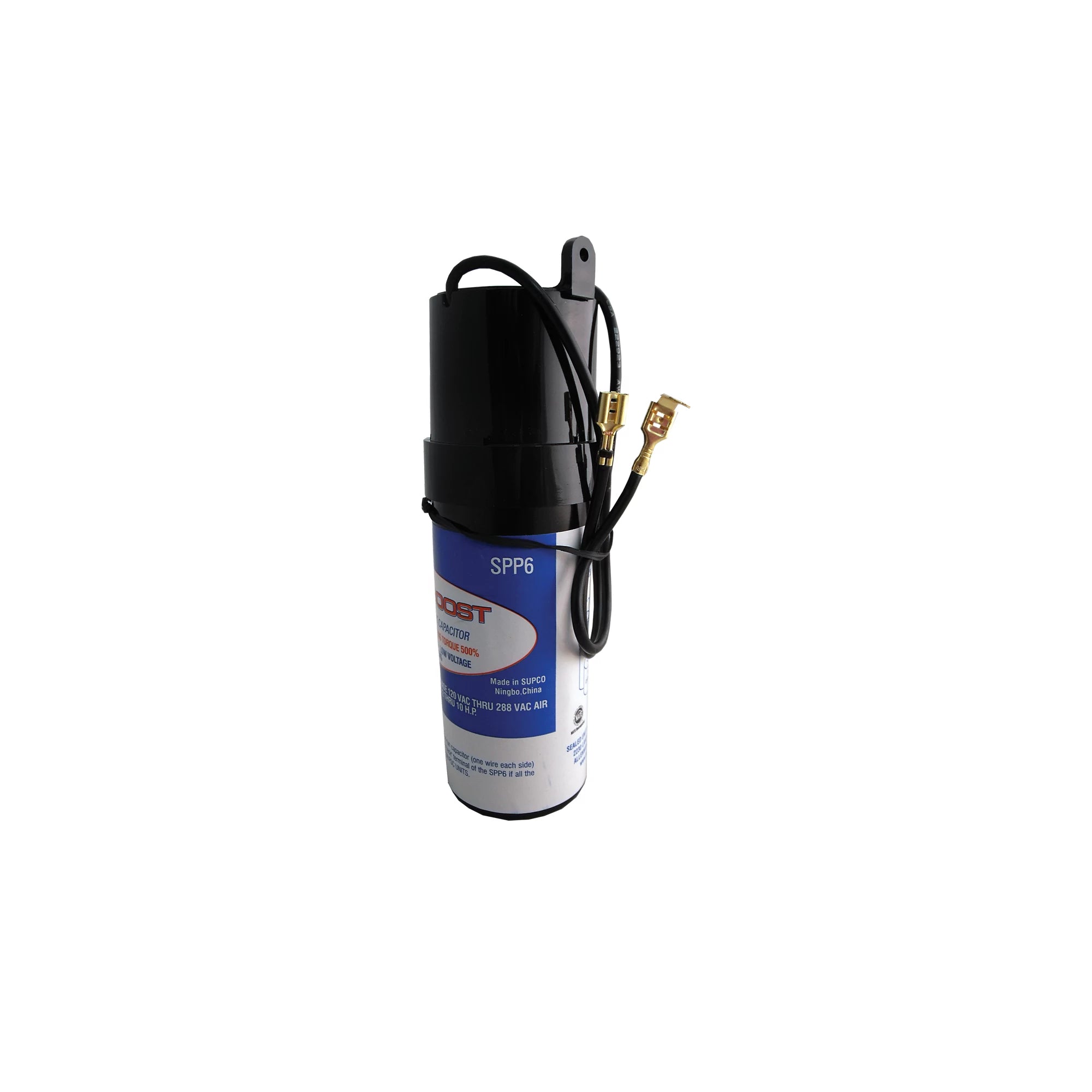

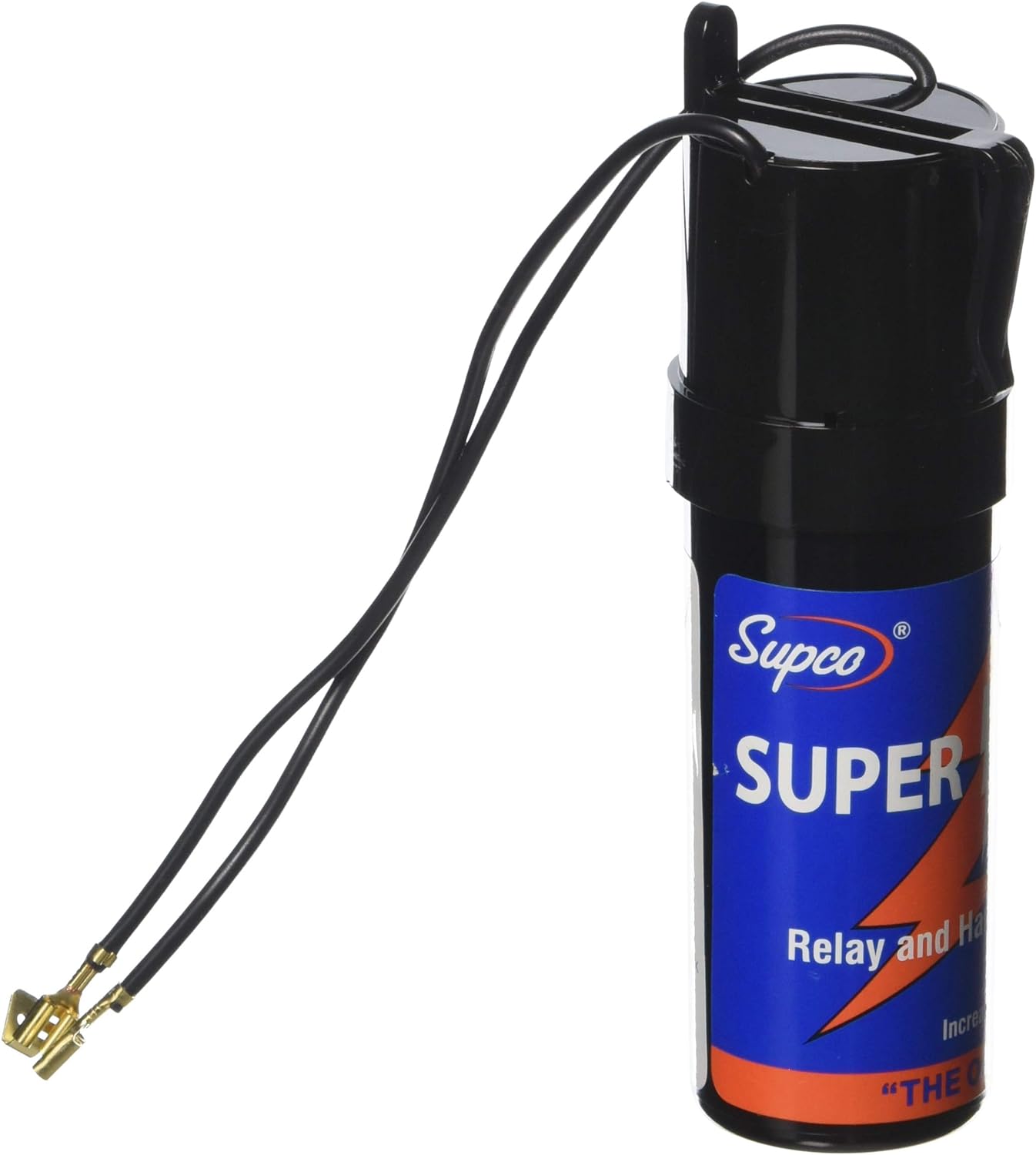

Supco SPP6 Super Boost Hard Start Kit 90/277 Volts 156 MFD

Product Description

The Supco SPP6 Super Boost Hard Start Kit is an OEM option for applications that call for a hard start. It combines a potential relay and start capacitor, providing a three-wire solution. This kit enhances starting torque, allowing compressors to start more easily, especially under heavy load conditions.

• Economical Option
• Two-Wire Installation
• Use with PSC Compressors

Product Highlights

The Supco SPP6 hard start kit increases torque by 500% and has field-proven reliability. It utilizes Positive Temperature Coefficient Relay and Capacitor (PTC) Technology and is suitable for 1/2 HP to 10 HP applications.

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: SPP6
• Country of Origin: CN

Technical Specifications

• Phase: 1
• Voltage: 90/277 Volts
• UPC: 687152031528
• UL Listed: Yes
• Type: Hard Start Kit
• Frequency: 60 Hz
• Microfarad: 156 MFD
• Model Info: SPP6
• Suitable For Use With: PSC Type Compressor
• Country of Origin: CN
• Manufacturer Name: Supco
• Brand: Supco
• Package Quantity: 1
• Manufacturers Part Number: SPP6
• Horsepower: 1/2-10hp
• Series-Brand: SPP Series
• MPN: SPP6
• Operating Voltage VAC: 90 to 277 VAC
• Recommended Range (hp): 1/2 - 10 hp
• Capacitor size ( F): 130 to 156 MFD
• Torque Increase: 500% Increase
• Applications: Hard starting compressors, Low voltage situations, Use on any single phase air-conditioner or refrigeration unit
• Material: Copper
• Shape: Round
• Mounting Type: Panel Mount or Surface Mount
• Series: SPP Super Boost Series
• Voltage Rating: 90 to 277 V
• Type [Features]: Relay
• Voltage [Features]: 90/277 VAC
• Capacitor MFD F: 130-156
• Cycle/Hertz: 50/60 Hz
• For Use With: Hard starting compressors
• Height: 1.5
• Length: 6
• Relay Type: PTC
• Width: 2
