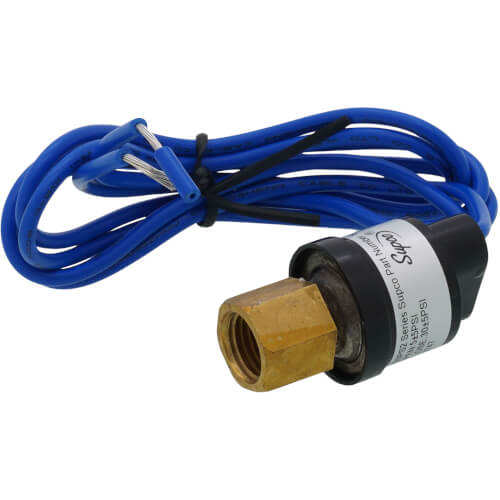

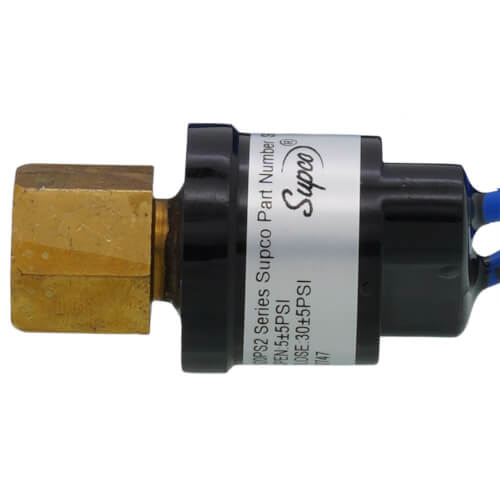

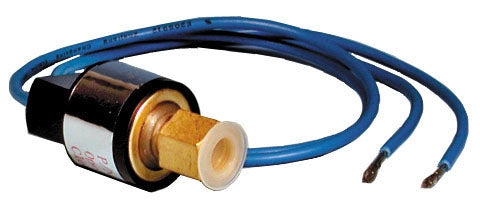

Supco SLP0530 Low Pressure Switch 24/120/240 VAC 10 A at 12 to 28 VAC/VDC

Product Description

The Supco SLP0530 is a low pressure switch designed for HVAC, air conditioning, and refrigeration systems. This device operates within a pressure range of zero to six hundred fifty PSI. It features a single pole single throw (SPST) configuration, suitable for various electrical applications. The switch opens at five PSI and closes at thirty PSI, ensuring efficient pressure control in your system.

• Operating voltage: 24/120/240 VAC
• Contact rating: 10 A at 12 to 28 VAC/VDC
• Connection type: 1/4 inch SAE female flare

Product Highlights

This product is robust and built for reliability in challenging environments.

Product Information

Standard Information

• Brand: Supco
• MPN: SLP0530

Technical Specifications

• Operating Pressure Rating: 0 to 650 PSI
• Maximum Surge Pressure Rating: 5000 PSI
• Contact Configuration: SPST
• Life Cycle at Rated Load: 100,000 cycles
• Rated Voltage: 24/120/240 VAC at 50/60 Hz
• Temperature Rating: 20 to 176 degrees F (ambient), 60 to 250 degrees F (fluid)

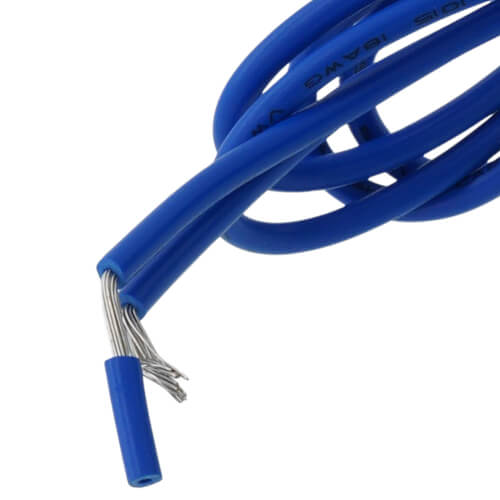

• Lead Length: 18 inches
• Wire Size: 18 AWG
