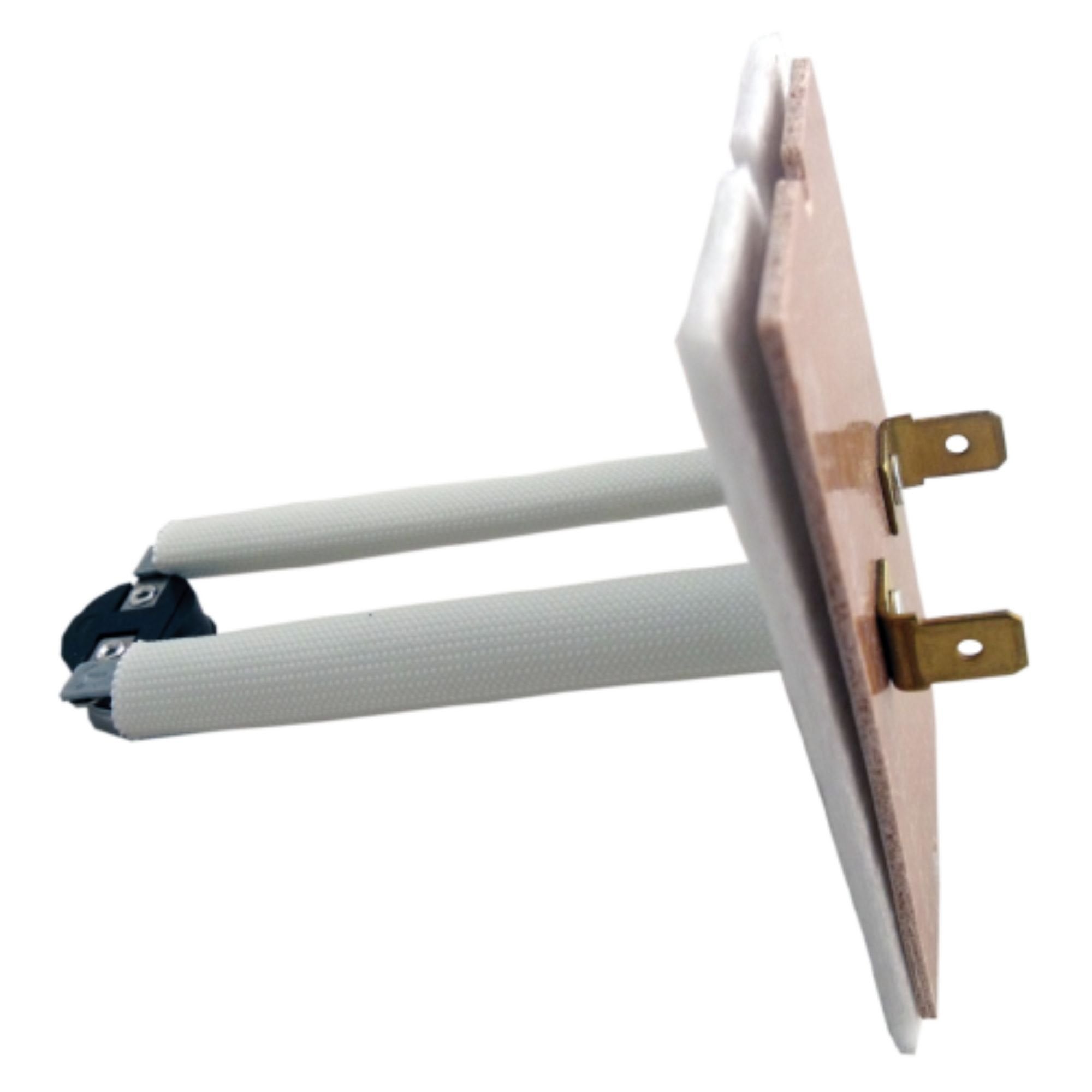

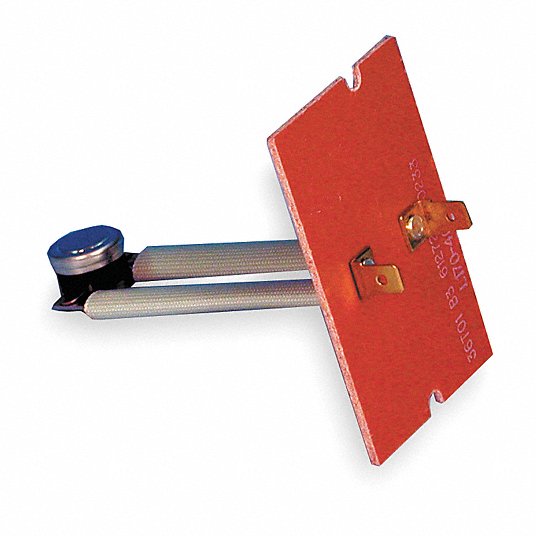

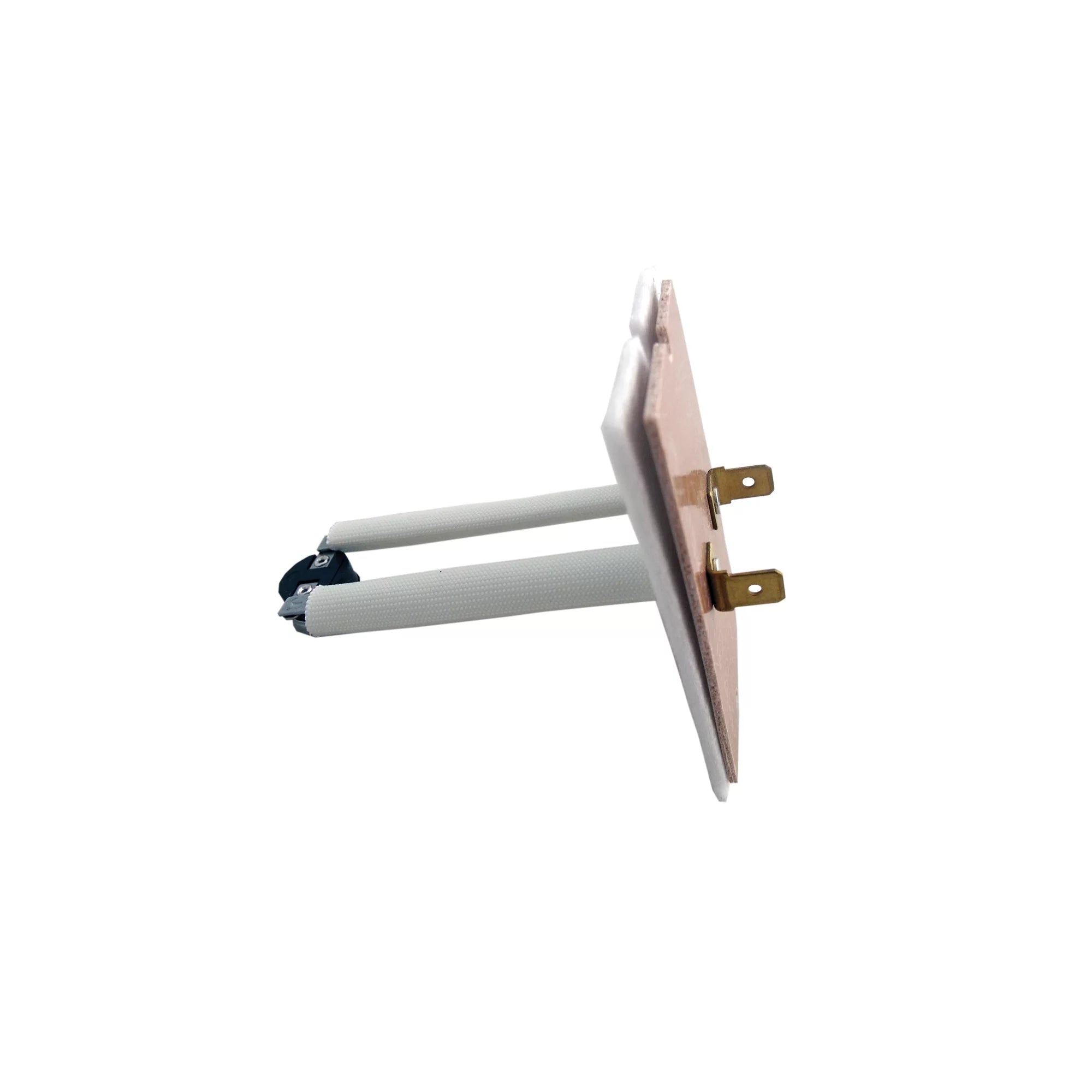

Supco SHL516 Bimetal Thermostat Fan Control

Product Description

The SUPCO SHL516 bimetal temperature control offers reliability in a compact design. This thermostat is designed for plenum mount applications with a fixed temperature and auto reset. It features a switch action that opens on rise and has a temperature range of 240-200F. It is UL Recognized, UL Listed, and CSA Certified.

• Fixed Temp, Auto Reset Plenum Mount
• Switch Action Open On Rise
• Element Insertion Length 3.12 In

Product Highlights

The SUPCO SHL516 is a reliable bimetal thermostat for plenum applications, featuring auto reset and a switch that opens on rise.

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: SHL516
• Country of Origin: Mexico

Technical Specifications

• Brand: Supco
• Cycle/Hertz: 50/60 Hz
• Voltage: 120/240 VAC
• Application: Limit Control
• Switch Action: Open on Rise
• Contact Form: SPST
• Switch Opening Temperature: 210 Degrees F
• Switch Closing Temperature: 170 Degrees F
• Insertion Length: 3.125 in
• Input Voltage: 120V AC, 240V AC
• Series: SHL
• Reset Type: Automatic Reset
• Element Type: Insertion
• Resistive Amps @ 120V AC: 15 A
• Resistive Amps @ 240V AC: 10 A
• Inductive Amps @ 120V: 3 A
• Inductive Amps @ 240V: 1.5 A
• Differential: 40 Degrees F
