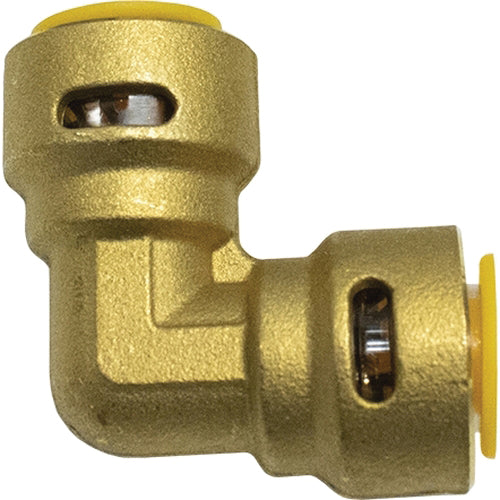

Supco SBE12 90 Deg Elbow (1/2 in Quick-Disconnect)

Product Description

The Supco SBE12 is a SB1 Series 90 Deg elbow quick-connect refrigerant fitting, MPN SBE12. It provides a 1/2 in quick-disconnect x 1/2 in quick-disconnect brass connection for use with A2L and other approved refrigerants. The fitting permits tool-free, flame-free installation on 1/4" to 7/8" copper tubing without brazing or nitrogen purge and is rated to 870 psi and 250 deg F.

• Tool-free, flame-free 1/2 in quick-disconnect elbow for 1/4"–7/8" copper tubing
• Brass C3771 construction with 870 psi pressure rating and 250 deg F temperature rating
• Compatible with a wide range of refrigerants including A2L refrigerants listed

Product Highlights

90 Deg brass quick-disconnect elbow, 1/2 in x 1/2 in, 870 psi, 250 deg F, compatible with listed refrigerants including A2L

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: SBE12

Technical Specifications

• Manufacturer: NSi Industries
• Brand: Supco
• MPN: SBE12
• UPC: 810009126249
• Series: SB1 Series
• Fitting Type: 90 deg Elbow
• Connection Size: 1/2 in x 1/2 in
• Connection Type: Quick-Disconnect
• Material: Brass (C3771)
• Body Material: C3771 Brass
• Dimensions: 1.417 in L
• Approved Copper Sizes (Hard Drawn): 1/4" - 7/8" Type ACR, M, L, K
• Approved Copper Sizes (Annealed): 1/4" - 7/8" Type ACR, L, K
• For Use With: A2L Refrigerants
• Approved Refrigerants: R134a, R404A, R290, R407A, R600a, R507, R22, R410A, R32, R407C, R448A, R449A, R454B, R500, R1234yf, R1234ze
• Pressure Rating: 870 psi
• Temperature Rating: 250 deg F
• Listings: UL Listed 207, SA #44910 SDTW(7)
• Vibration Resistant Rating: UL 1963
