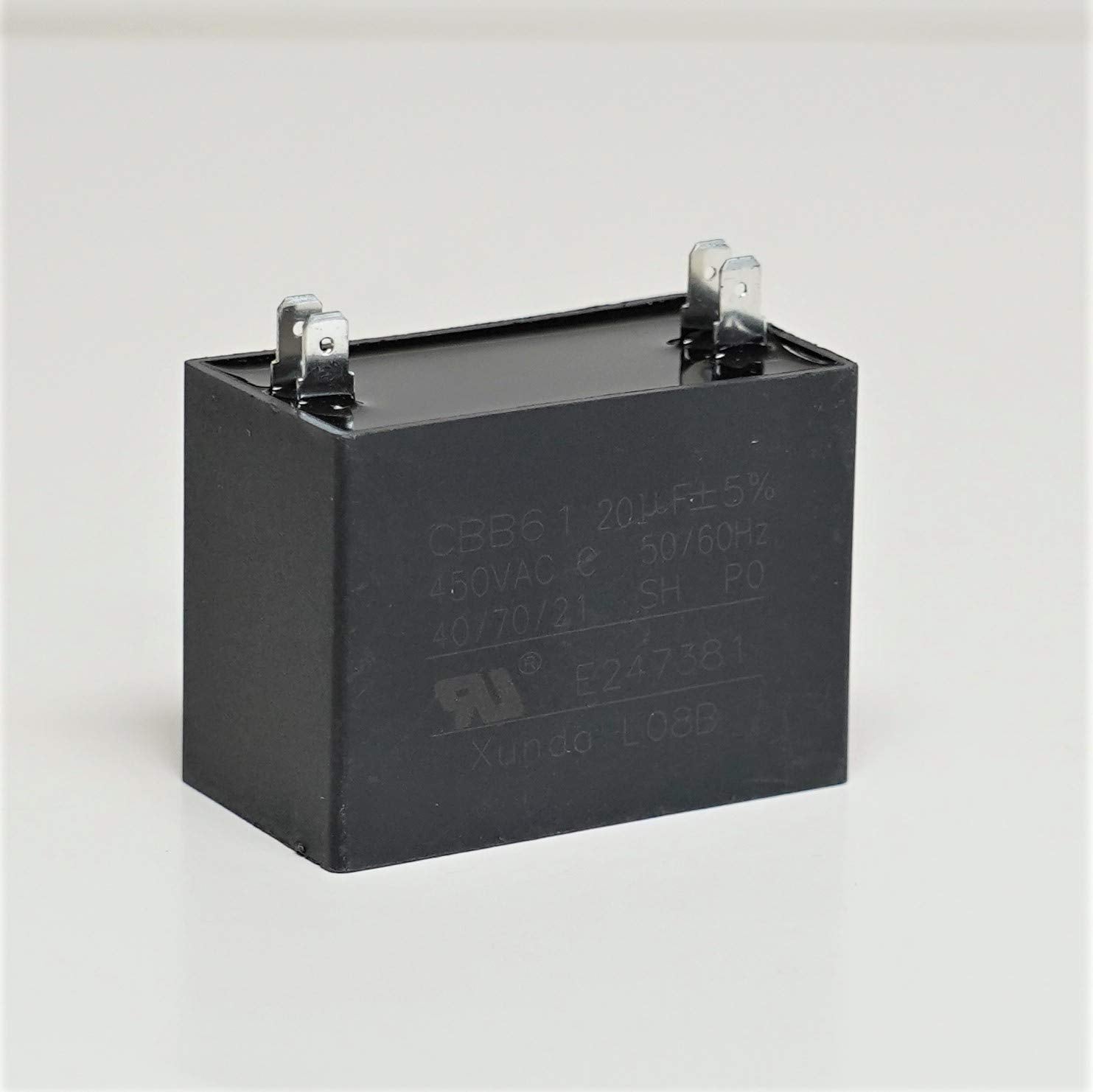

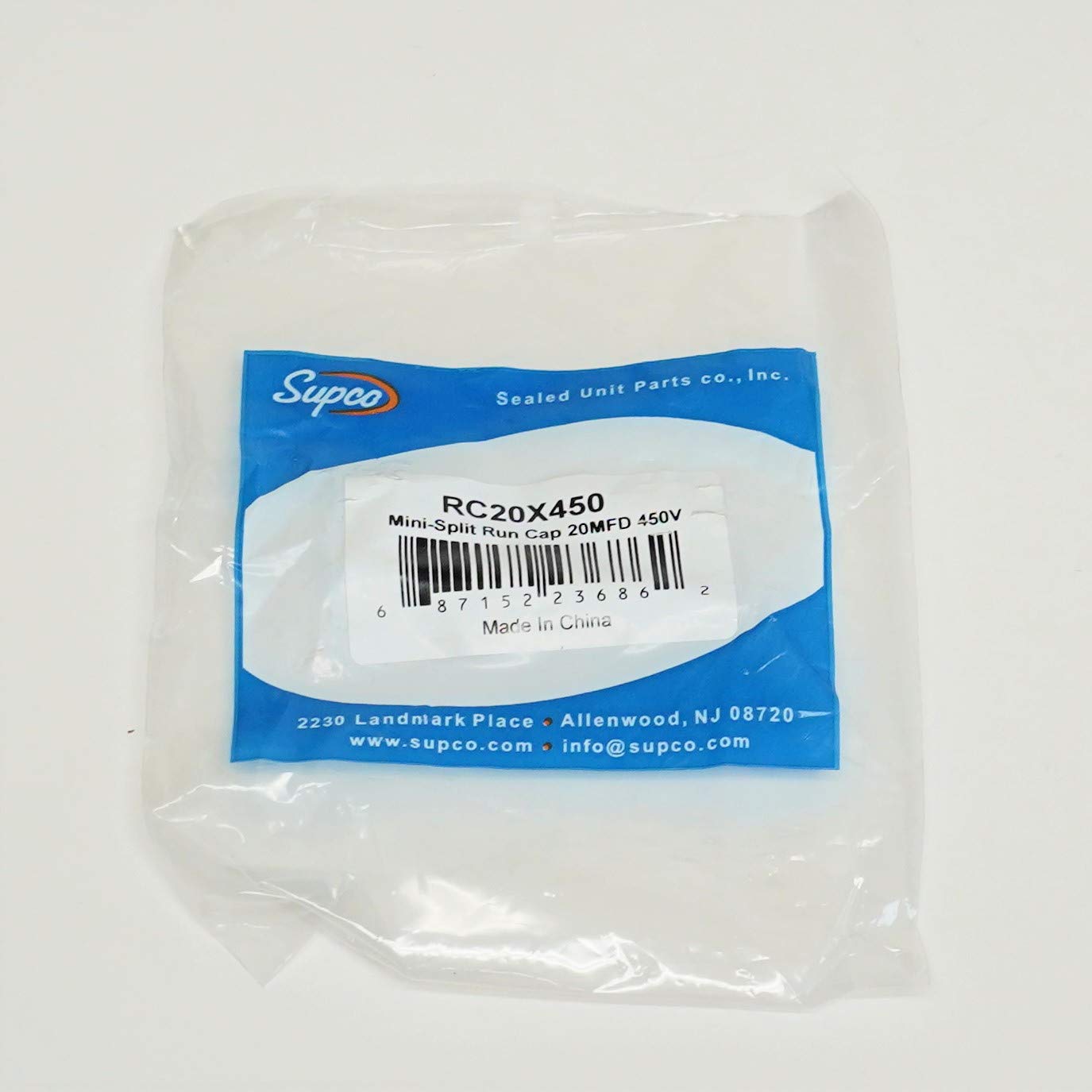

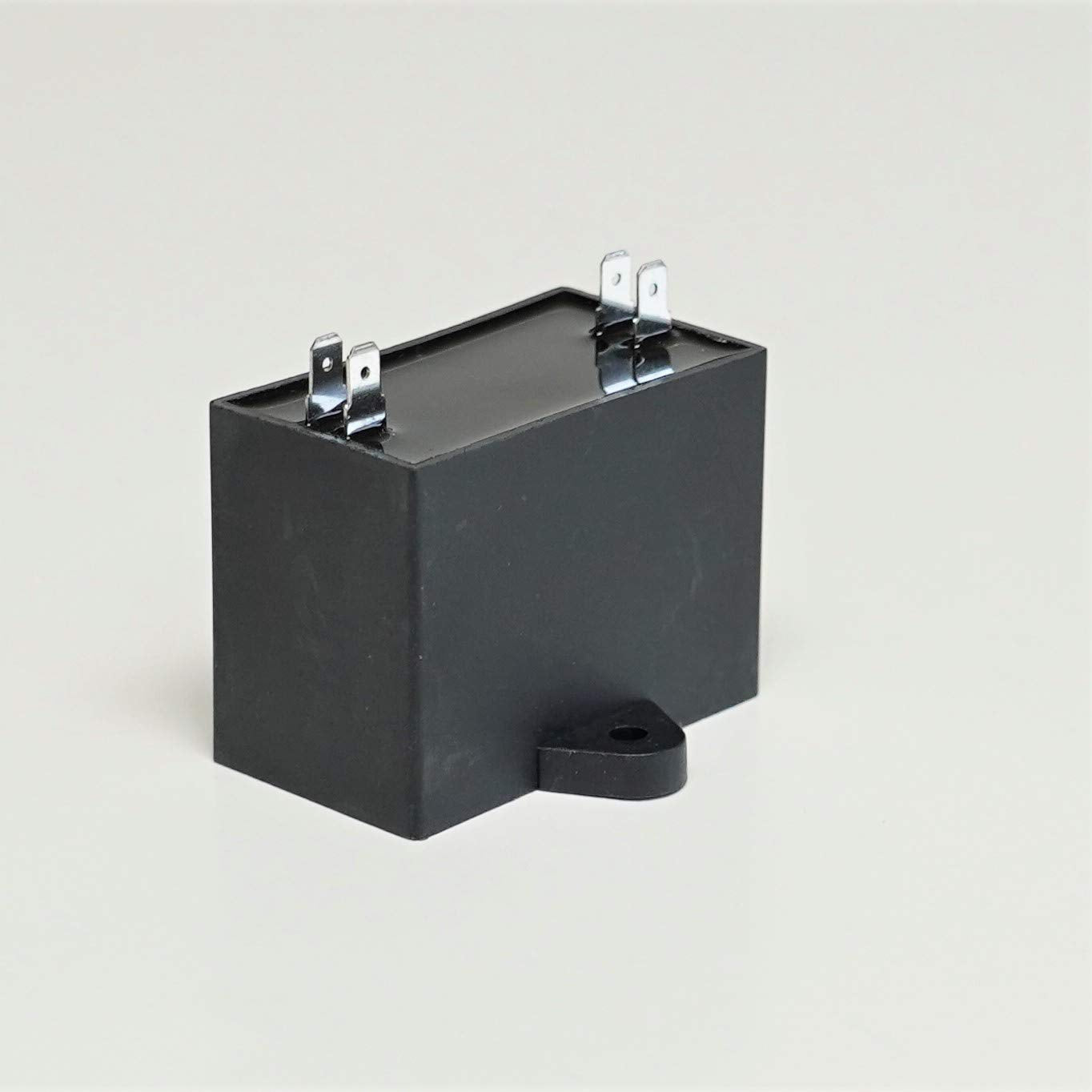

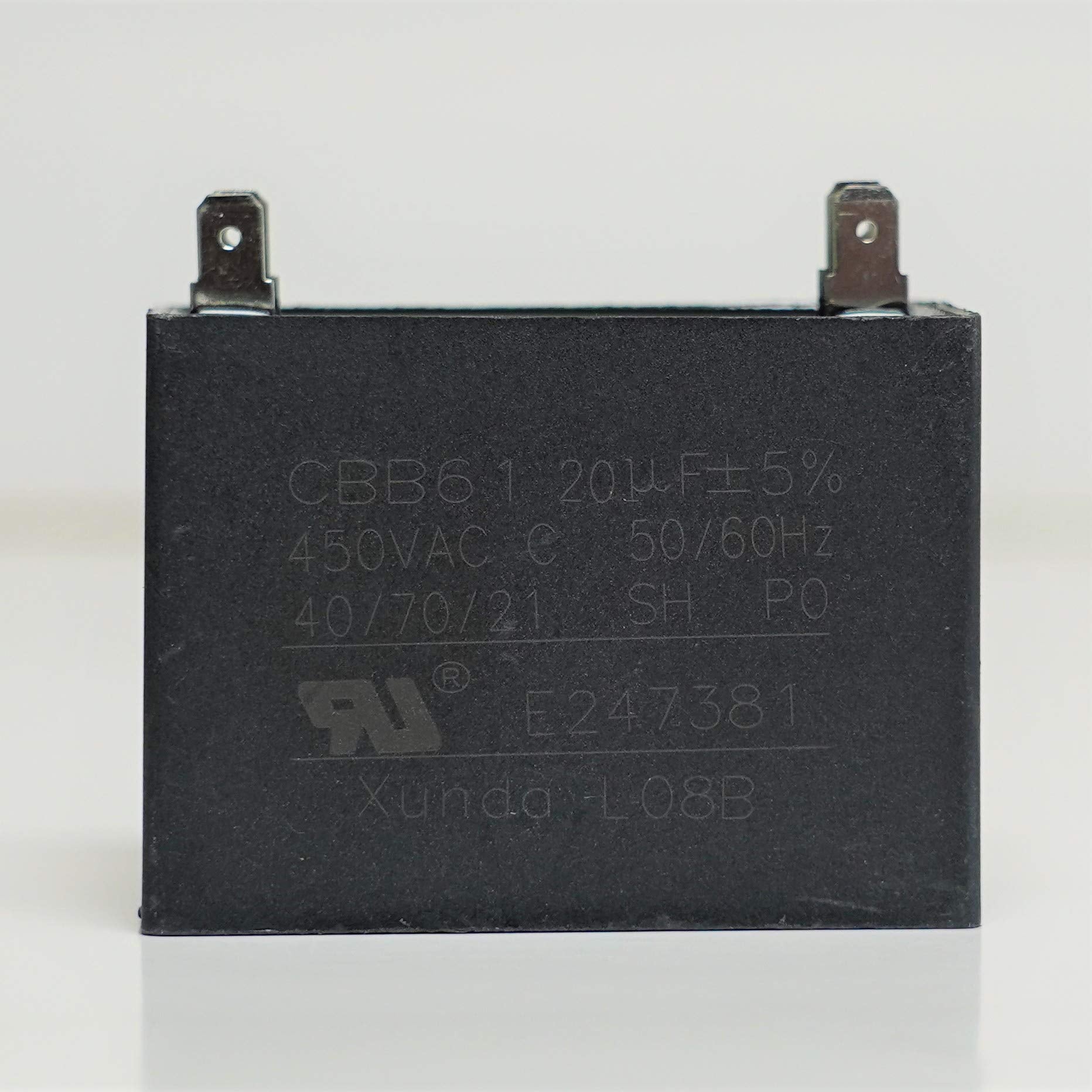

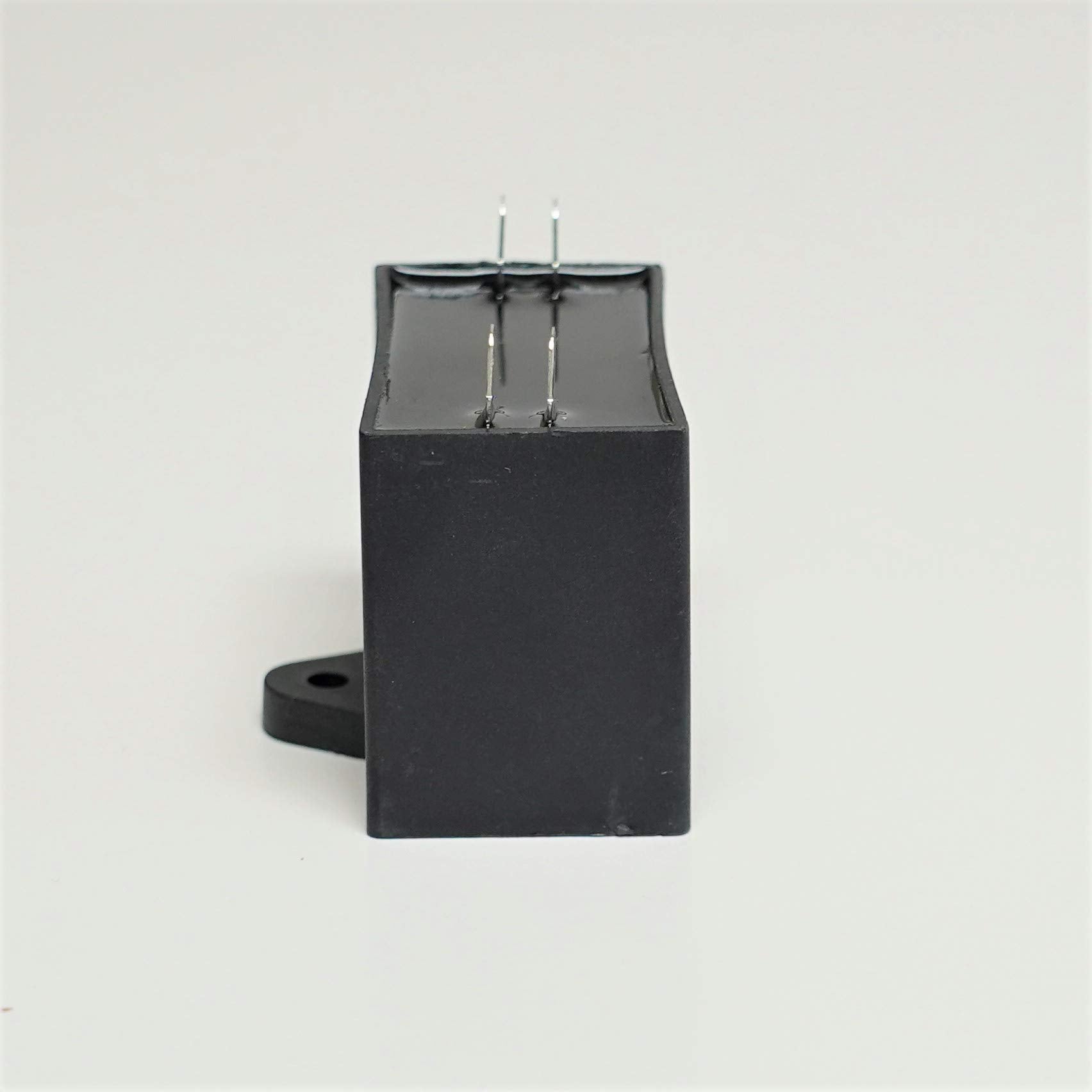

Supco RC20X450 Minisplit Run Cap 20mfd 450v

Product Description

The SUPCO RC20X450 is a Mini-Split Air Conditioner Run Capacitor. This component features a 20 MFD capacitance and a 450 VAC voltage rating, designed for efficient motor operation in HVAC systems. It includes 4- 3/16inch terminals and is constructed from plastic. The capacitor meets IEC 252 Standard and is UL recognized, ensuring compliance and safety for various electronic devices.

• Designed as a Mini-Split Air Conditioner Run Capacitor.
• Features 20 MFD capacitance and 450 VAC voltage.
• Equipped with quad blade quick connect terminals for installation.

Product Highlights

Maintains phase shift for efficient motor operation in HVAC motors.

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: RC20X450
• Country of Origin: China

Technical Specifications

• Capacitance Tolerance: +/- 5%
• Certifications: UL
• Capacitor Voltage: 450VAC
• Capacitance: 20 MFD
• Operating Temperature: -13°F to 185°F (-25°C to 70°C)
• Application: Mini-Split HVAC Run Capacitor
• Shape: Round
• Type: Single Run Capacitor
