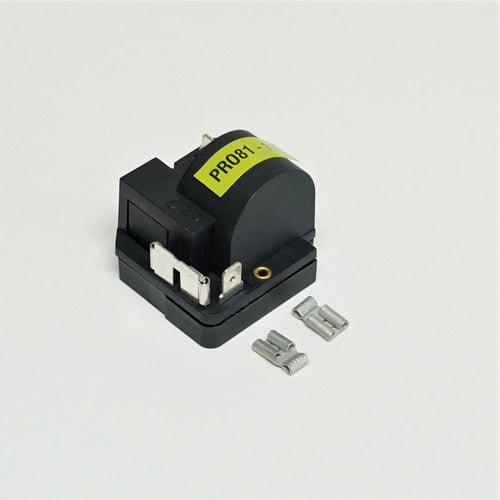

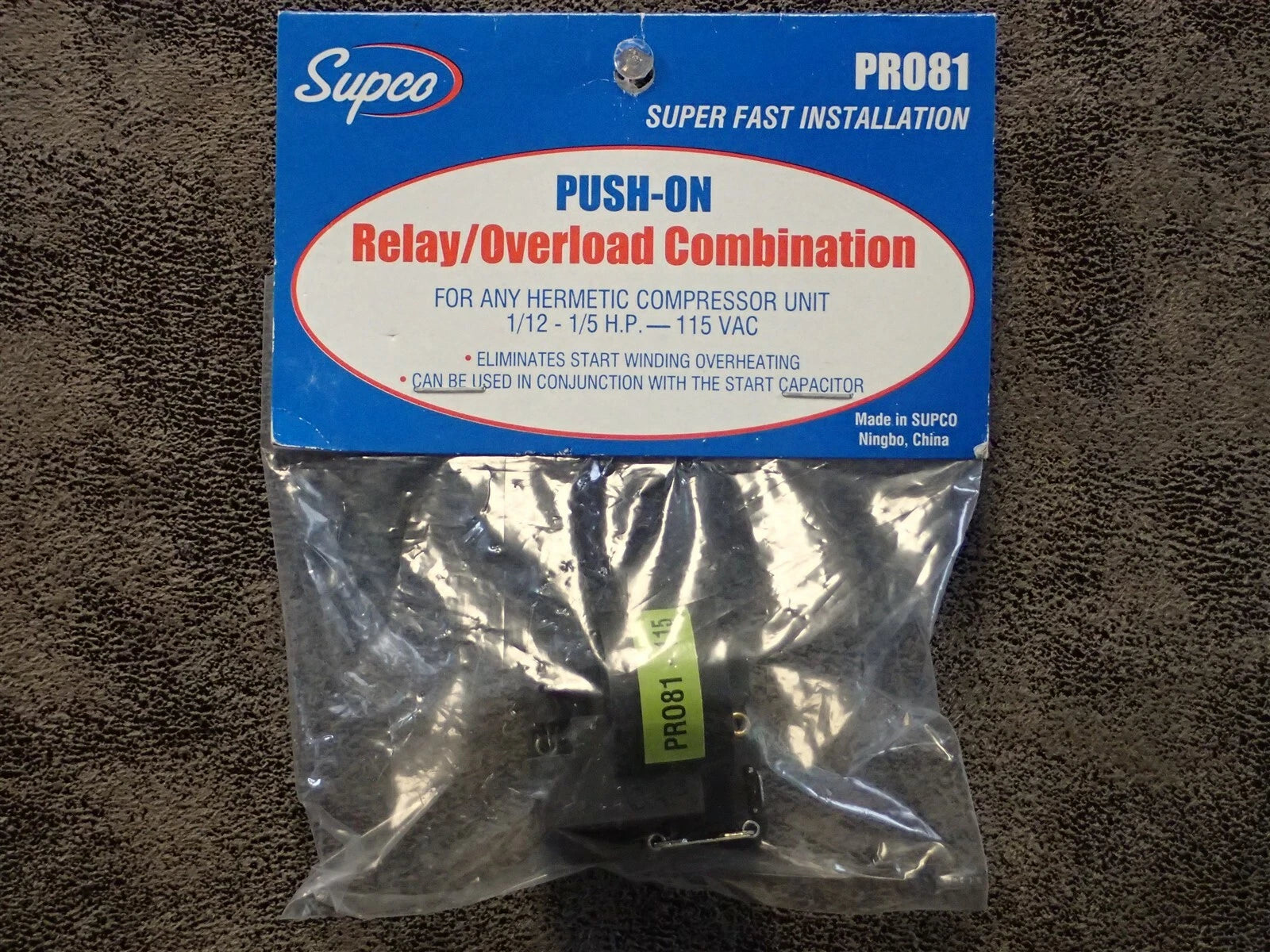

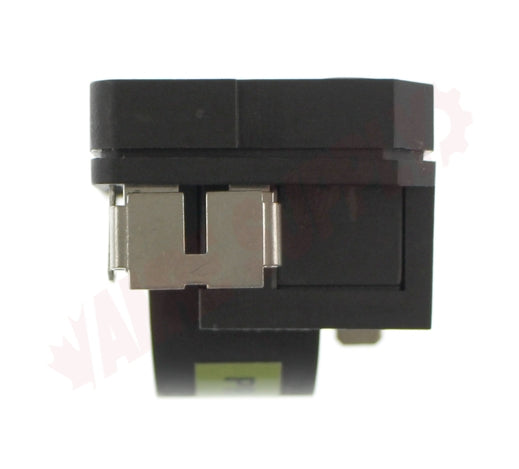

SUPCO PR081 Refrigerator Relay and Overload

Product Description

The SUPCO PR081 is a relay and overload combination specifically designed for refrigerator compressors. This component is essential for protecting against locked rotor conditions, which can cause overheating of the start winding in motors. It features a push-on design that allows for easy installation on pin-type terminals. The PR081 is compatible with motors ranging from one twelfth to one fifth horsepower and is UL Recognized for safety and reliability.

• Provides locked rotor protection

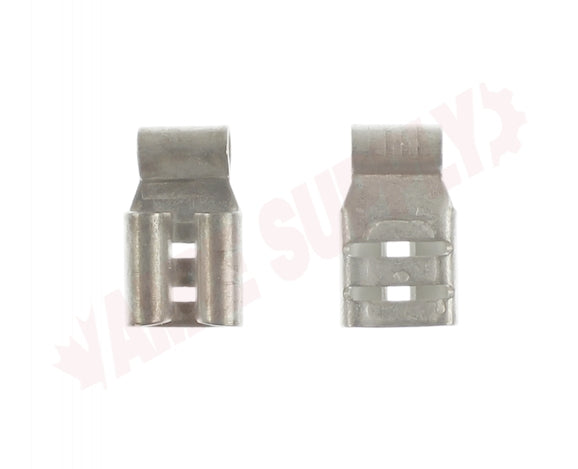

• Installs easily on pin-type terminals
• Compatible with motors from 1/12 to 1/5 horsepower

Product Highlights

This relay and overload combination is suitable for both start capacitor motors and those without capacitors.

Product Information

Standard Information

• Brand: SUPCO
• MPN: PR081

Technical Specifications

• Mounting Type: Push On
• Horsepower (HP): 1/12 - 1/5
• Voltage (VAC): 115/120V
• Power Source: Electric
• Compatible Brand: SUPCO
• Type: Compressor
