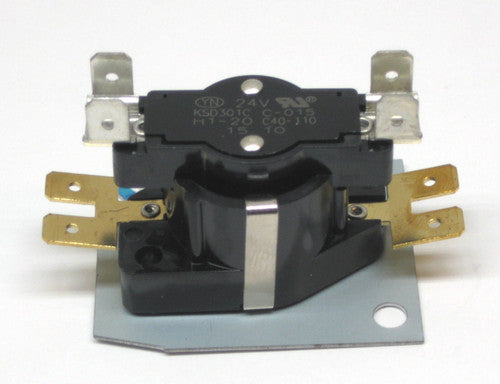

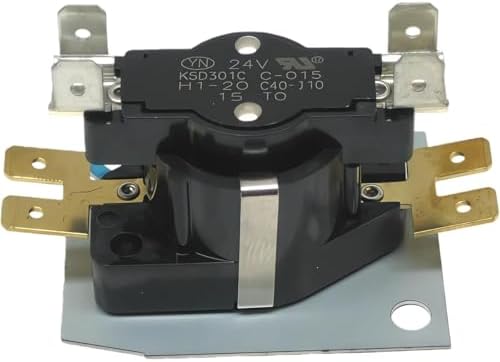

Supco PCQ101 Electric Heat Sequencer Control SPST 24 Volt replacement Q101

Product Description

The SUPCO PCQ101 is an electric heat sequencer control, SPST 24 Volt, designed for Q101, 24A34-1, and B1290906 applications. It features direct replacement for most fan/heat sequencing functions and equivalent terminal markings to competitive types. The sequencer supports a combined load rating of 30A @ 240 VAC total.

• Electric Heat Sequencer Control SPST 24 Volt for Q101 / 24A34-1 / B1290906
• 24 Volts SPST, 1 Timing / 1 Switch, Off 40-110 Seconds, On 1-20 Seconds
• PSQ Models are Direct Replacement for Most Fan / Heat Sequencing Functions. Terminal Markings are Equivalent to Competitive Types

Product Highlights

The PCQ101 ensures efficient fan and heat sequencing, offering broad compatibility and reliable performance in various HVAC systems.

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: PCQ101

Technical Specifications

• Manufacturer: NTTP
• Part Number: RIV05827
• Item model number: NTTP05827
• Type: SPST
• Timing: 1 Timing / 1 Switch
• Off Time: 40-110 Seconds
• On Time: 1-20 Seconds
• Voltage: 24 Volts
• Wattage: 30 watts
