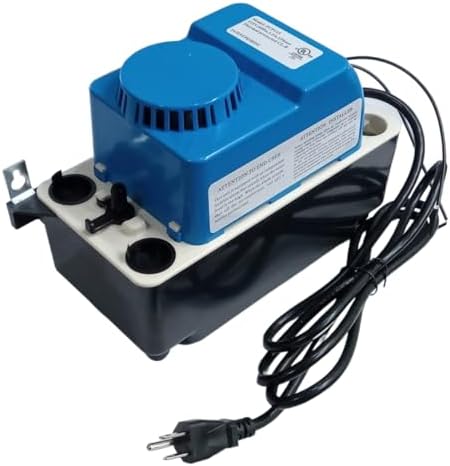

Supco PCP115 Condensate Pump 115V

Product Description

The SUPCO PCP115 is a high-quality pump designed to remove condensate from AC systems, condensing furnaces and boilers, ice machines, drinking fountains, and coolers. These pumps incorporate an audible alarm and an overflow switch that can be used to shut down the system.

• Features a 1/4" quick connect terminals
• Includes a 1/2" rubber ball check valve
• Suitable for acidic condensate

Product Highlights

This condensate pump is designed for removing condensate from various systems, with an audible alarm and overflow switch for system shutdown.

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: PCP115

Technical Specifications

• Motor Horsepower: 1/10 HP
• Voltage: 115 VAC
• UL Listed: Yes
• Watts: 80 W
• Amperage: 1.45 A
• Frequency: 60 Hz
• Motor Overload Protector: Yes
• Height (Total): 7.25"
• Length (Total): 11.25"
• Width (Total): 5"
• Tank Capacity: ½ Gal.
• Discharge: ⅛" Barb
• Maximum Temperature: 110° F
• Alarm Sound Level: 80 dB
• Brand: Premier Component Parts
• Material: Plastic
• Style: Submersible
• Product Dimensions: 9"L x 7"W x 12"H
• Power Source: AC
• Item Weight: 5.55 Pounds
• Maximum Lifting Height: 20 Feet
• Horsepower: 0.1 Horsepower
• Number of Packs: 1
• Model Number: PCPUMP115
• Manufacturer: Premier Component Parts
• Specific Uses For Product: cooling
• Manufacturer Part Number: PCP115
• Item Type Name: Condensate Pump
• Unit Count: 1.0 Count
• Included Components: Condensate Pump
